Mini nozzle 12

350 Bar

Product description

Short compact mini jet.

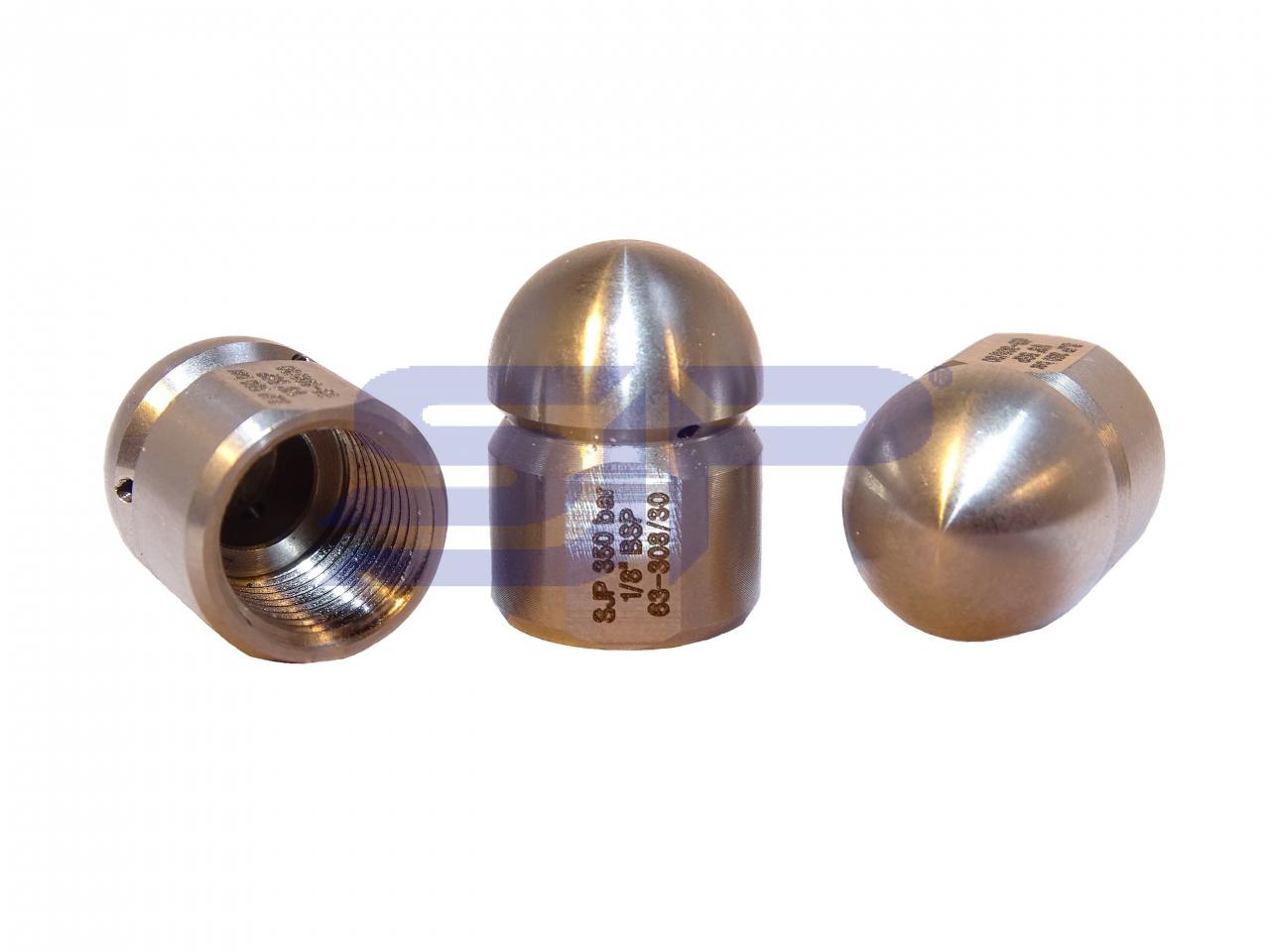

  • 3 x ø 1,00 mm. 45° pulling
  • ø 12 x 16,5 mm. incl. extra od radius for easy bend axis.
  • ⅛"BSP female.
  • Mat: st. steel 316 (chemical resistant).
  • Part Number: 63-308/30

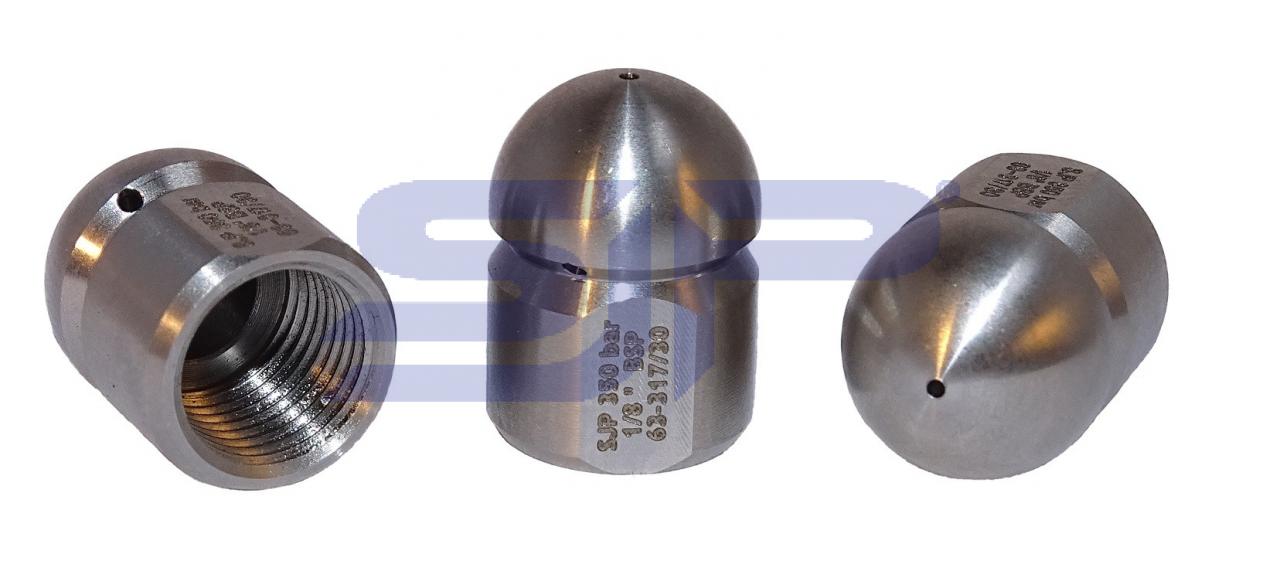

  • 3 x ø 1,00 mm. 45° pulling + front jet 0,8 mm.
  • ø 12 x 16,5 mm. incl. extra od radius for easy bend axis.
  • ⅛"BSP female.
  • Mat: st. steel 316 (chemical resistant).
  • Part Number: 63-317/30

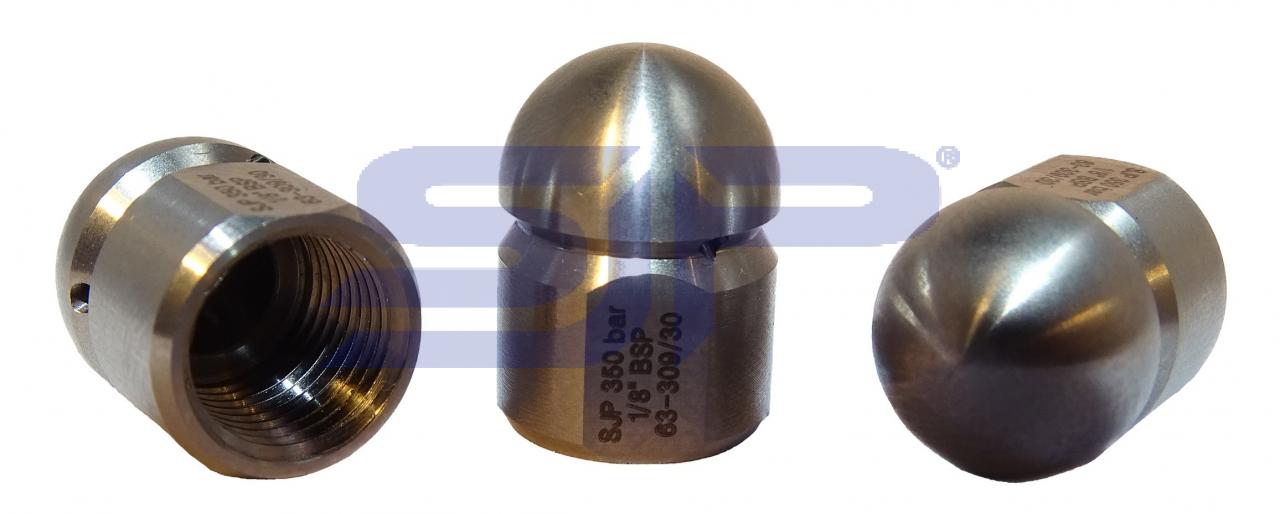

  • 3 x ø 1,3 mm. 45° pulling
  • ø 12 x 16,5 mm. incl. extra od radius for easy bend axis.
  • ⅛"BSP female.
  • Mat: st. steel 316 (chemical resistant).
  • Part Number: 63-309/30

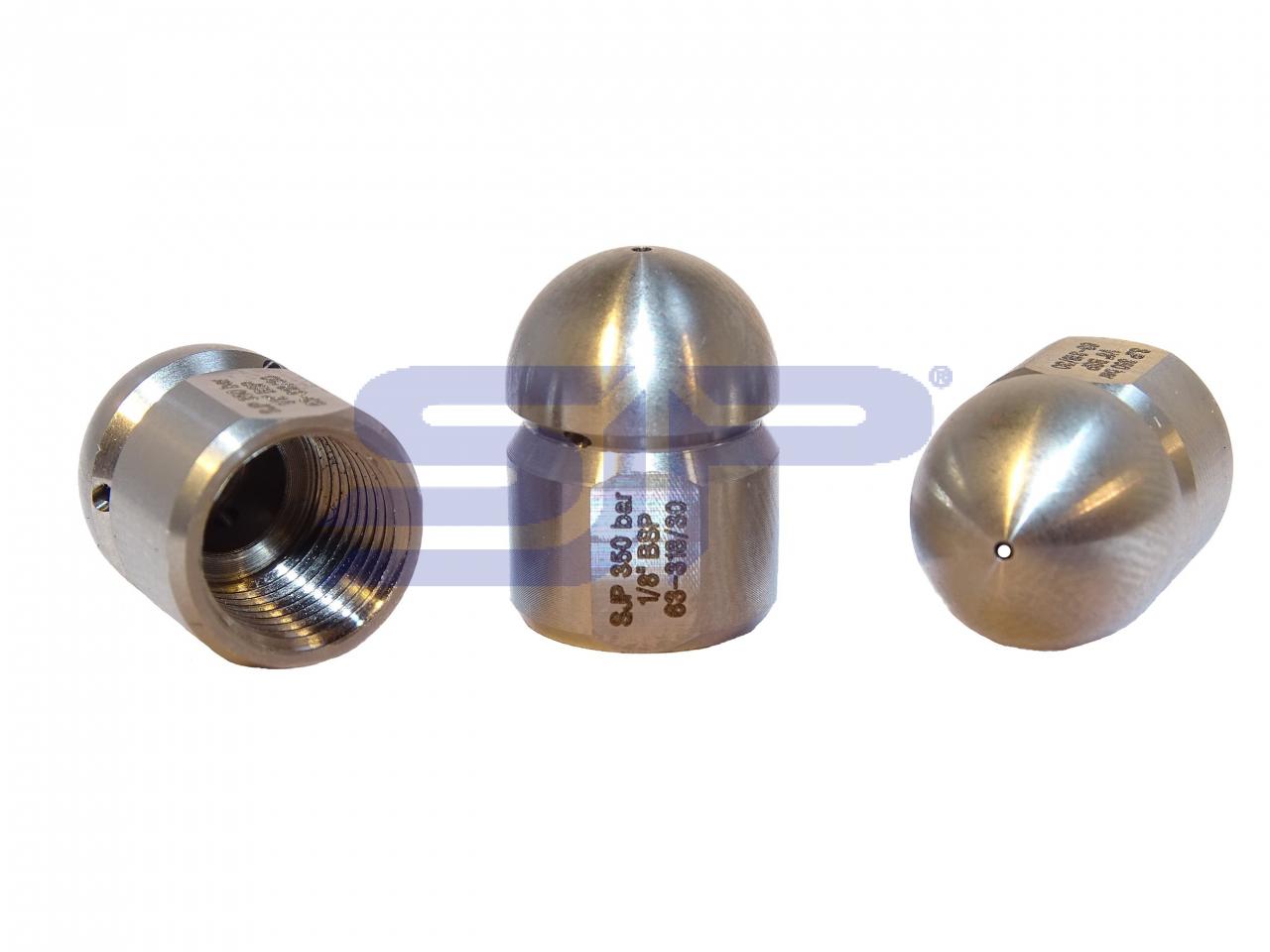

  • 3 x ø 1,2 mm. 45° pulling + front jet 0,8 mm.
  • ø 12 x 16,5 mm. incl. extra od radius for easy bend axis.
  • ⅛"BSP female.
  • Mat: st. steel 316 (chemical resistant).
  • Part Number: 63-318/30

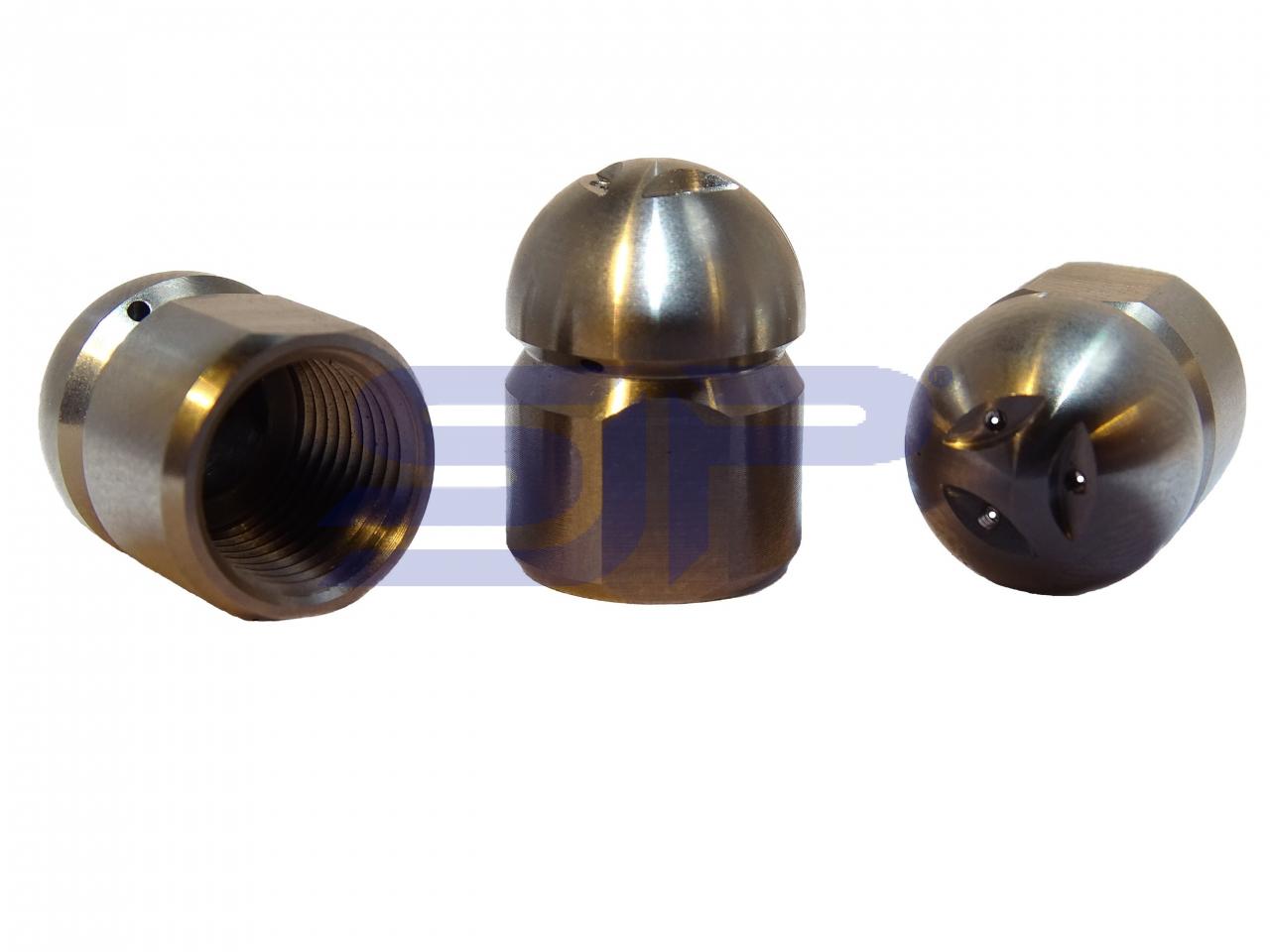

  • 3 x ø 1,0 mm. 45° pulling + 3 x front jet 0,8 mm. pointed 10° to the middle
  • ø 12 x 16,5 mm. incl. extra od radius for easy bend axis.
  • ⅛"BSP female.
  • Mat: st. steel 316 (chemical resistant).
  • Part Number: 63-320/30


On attached files you can open the desired drawing
