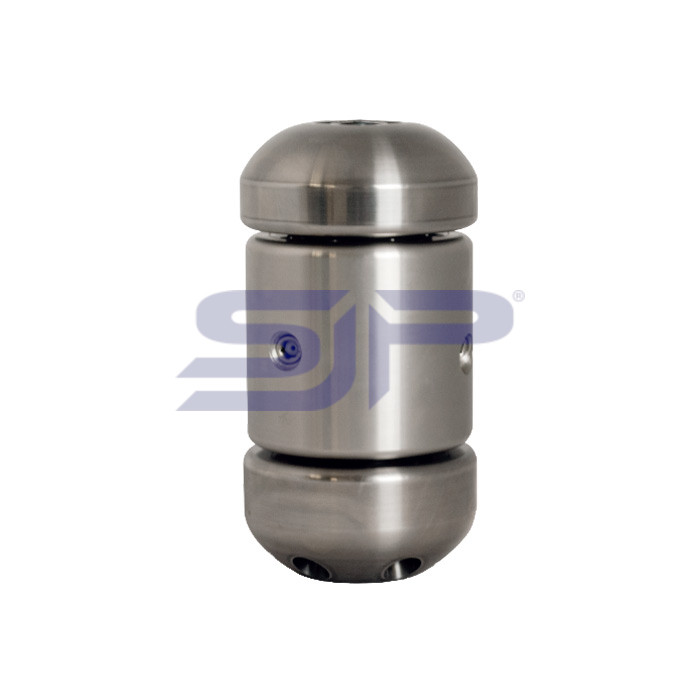

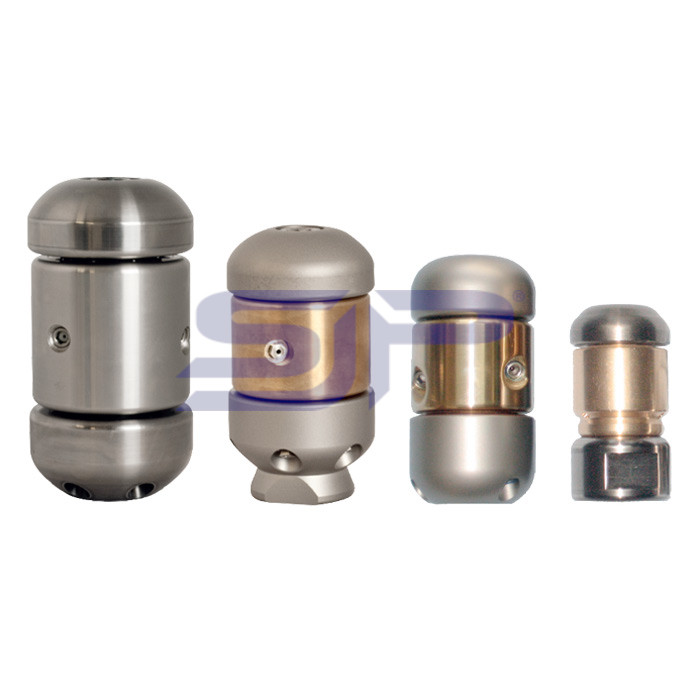

Rotor Nozzle

300 Bar

Product description

The Rotor-Nozzles with their 3 cutting-jets at an angle of 90° - 75° & 60° in the rotor, ore all 45° pulling (in the smaller version) cause simultaneously the cleaning procedure and excellent thrust (3 x 22° thrust jets in the body) for the forward move of the tool i.e. the jets combine rotation and thrust in one function resulting in a low water consumption.

The version ø 12 & ø 16 mm. with 4 holes in the rotor spins much faster, therefor the cleaning capacity is less than the 3-hole version who spins slower (one hole is a brake).

To mount a bigger nozzle in the break opening, gives the rotor slower speed for better performance

  • With sufficient water capacity, optional thrust jets can facilitate upward cleaning.
  • Nozzles comes with ceramic inserts in rotor and body (25°).


Applications:

  • Cleaning of pipes before TV-recordings
  • To remove mineral deposits and grease in pipes.


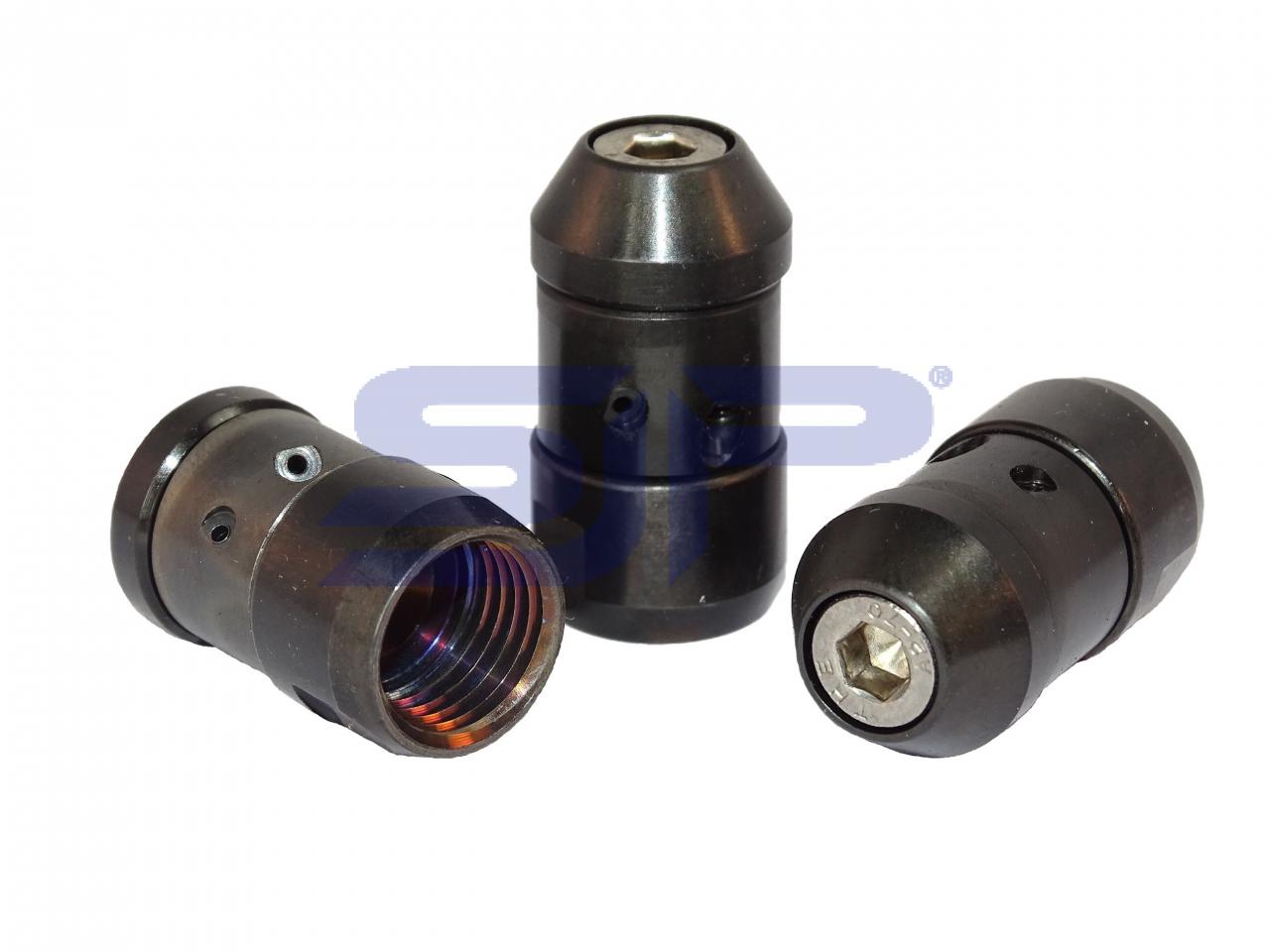

Details ø 12 mm. all pulling , max. wp 200 Bar :

  • Dimensions : ø 12 x 32 mm.
  • Connection : ⅛"BSPF
  • Nozzle patern : in rotor 3 x 0,90 mm. 45° pulling
  • Cleaning area : ø 15 - ø 50 mm.
  • Min. flow : 12 ltr./min,
  • Weight : 14 gr

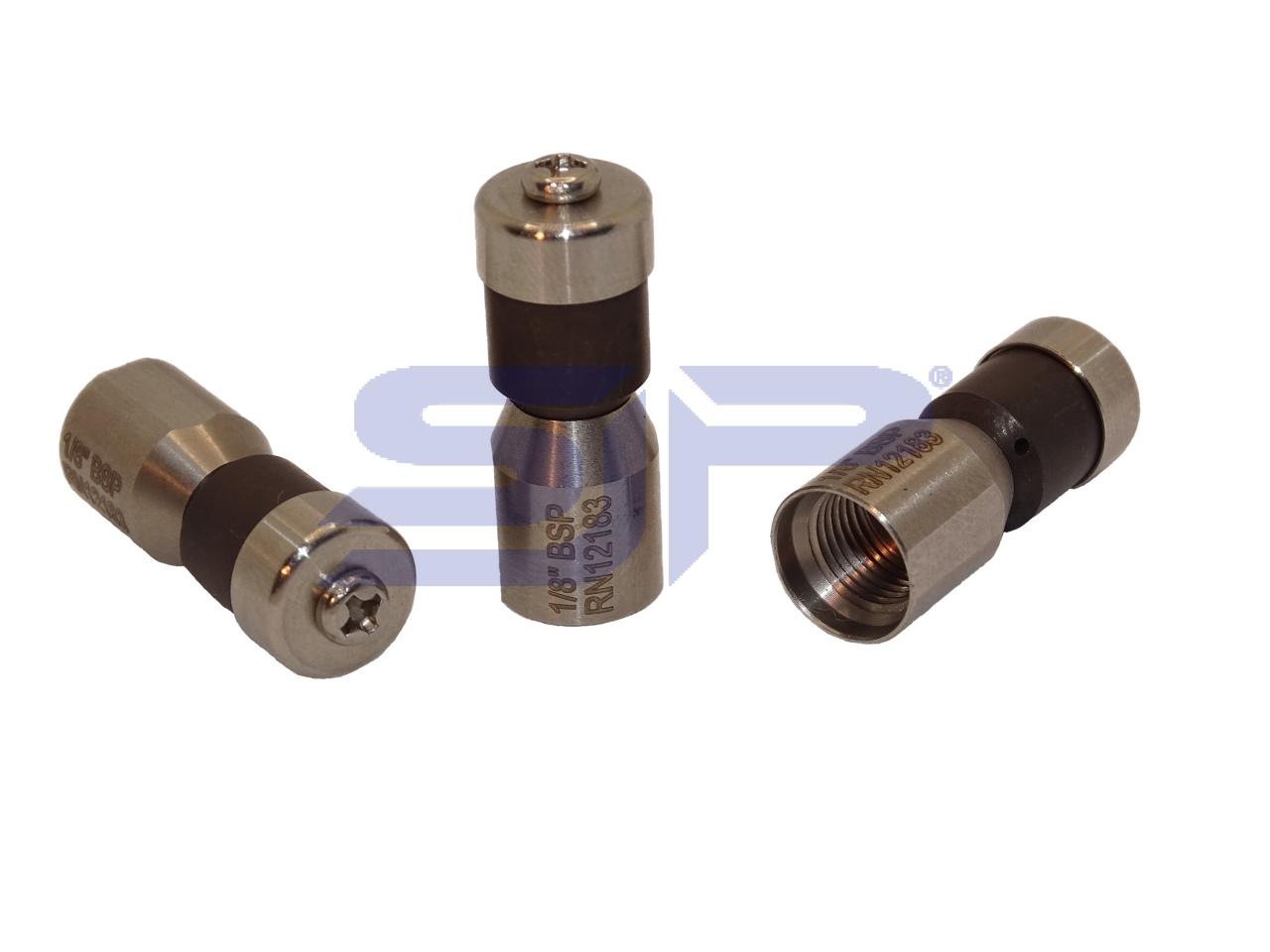

  • Part number : RN12183


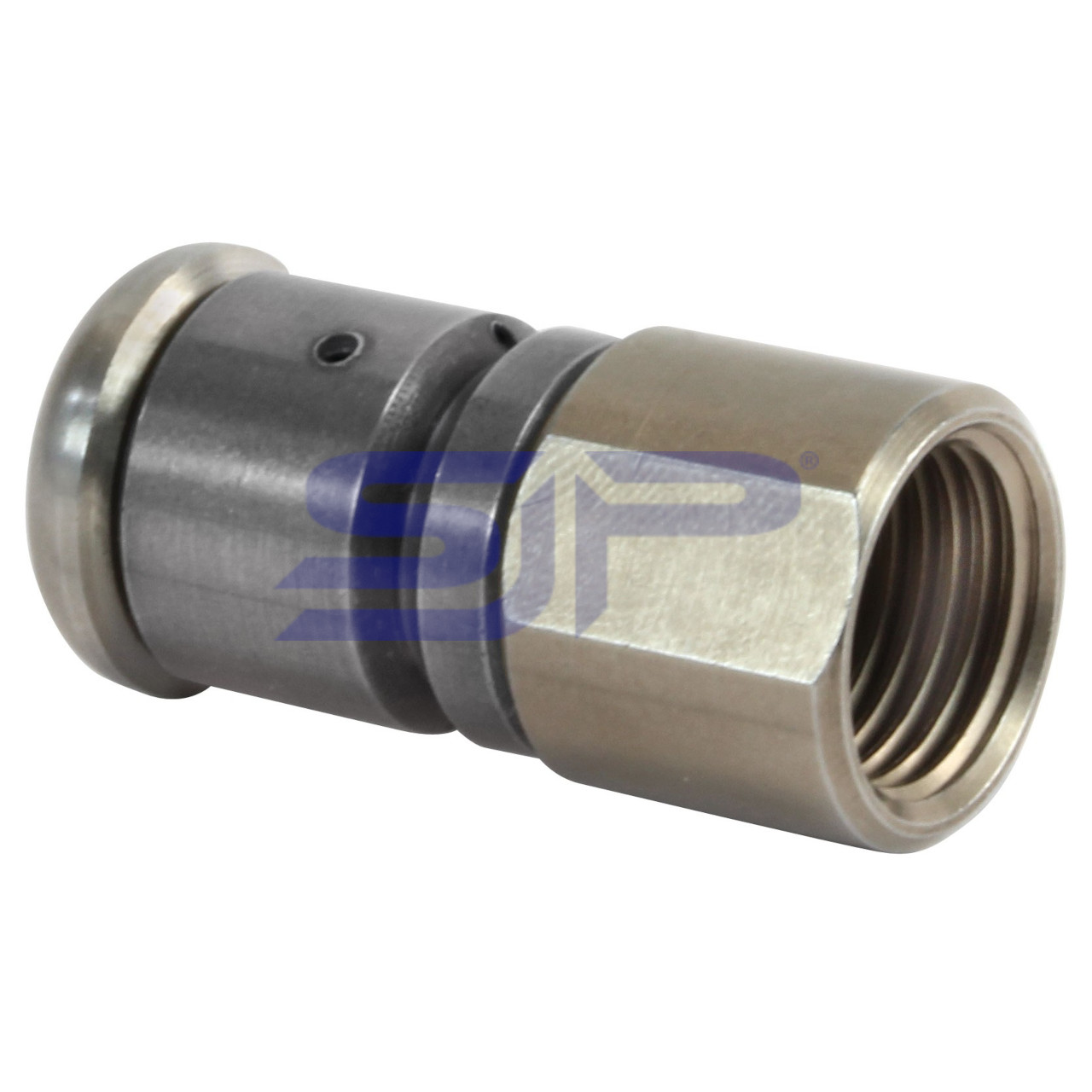

Details ø 12 mm. ( type ST-49.3 ) :

  • Dimensions : ø 12 x 28 mm.
  • Connection : ⅛"BSPF
  • Nozzle patern : in rotor 2 x 45° / 2 x 90° drilled
  • Cleaning area : ø 15 - ø 50 mm.
  • Min. flow : 12 ltr./min,
  • Weight : 0,05 kg.
  • Part number 05 nozzle number (± 13 ltr./min. - 150 bar) : 200049950
  • Part number 07 nozzle number (± 20 ltr./min. - 150 bar) : 200049970


Details ø 12 mm. (USB) :

  • Dimensions : ø 11,9 x 25 mm.
  • Connection : ⅛"BSPF
  • Nozzle patern (drilled) in rotor : 1 x 90°/ 1 x 65° / 1 x60°
  • Cleaning area : ø 15 - ø 60 mm.
  • Min. flow : 10 ltr./min,
  • Weight : 0,015 kg.

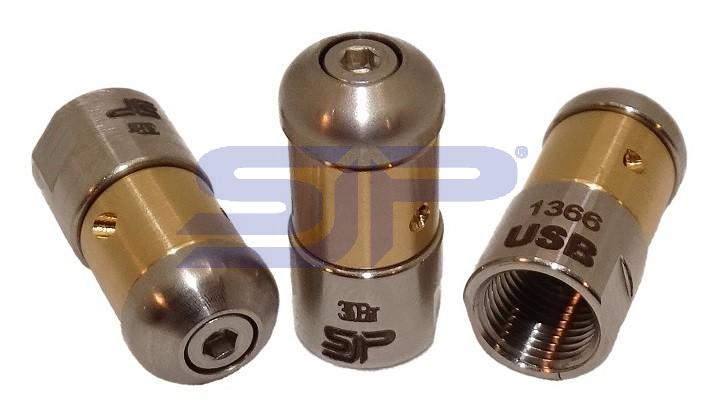

  • Part number : 1366


Details ø 16 mm. (USB) :

  • Dimensions : ø 16 x 34 mm.
  • Connection : ⅛"BSPF
  • Nozzle patern : 3 x 45° drilled in rotor
  • Cleaning area : ø 30 - ø 100 mm.
  • Min. flow : 12 ltr./min,
  • Weight : 0,1 kg.
  • Part number : 1365


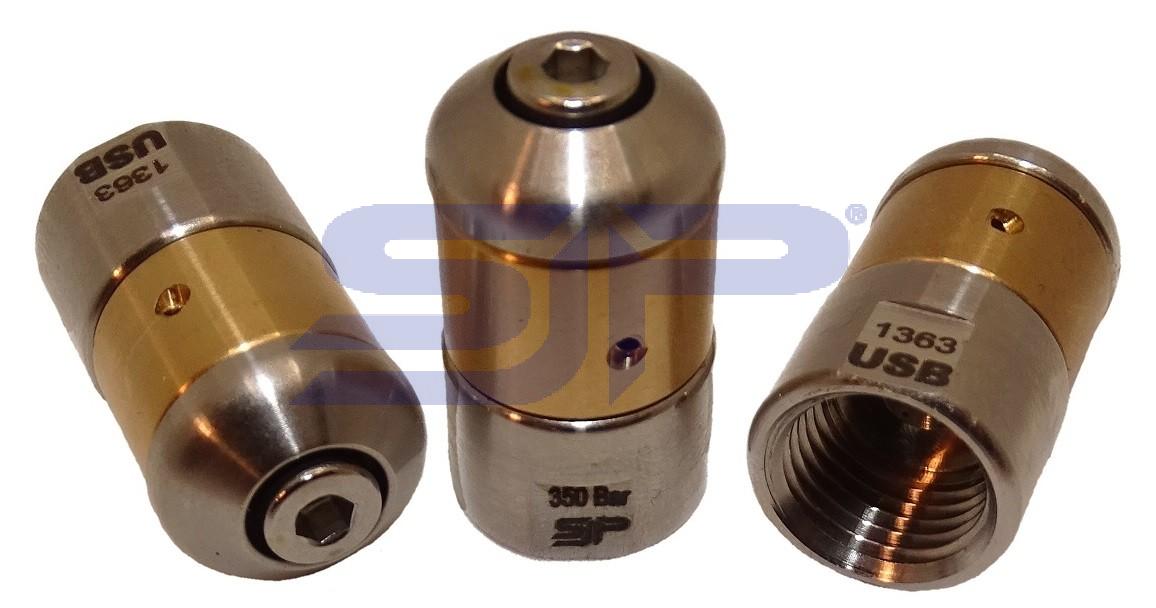

Details ø 16 mm. (USB) :

  • Dimensions : ø 16 x 29 mm.
  • Connection : ¼"BSPF
  • Nozzle patern (drilled) in rotor : 1 x 90°/ 1 x 65° / 1 x60°
  • Cleaning area : ø 25 - ø 120 mm.
  • Min. flow : 12 ltr./min,
  • Weight : 0,032 kg.
  • Part number : 1363


Details ø 16 mm. :

  • Dimensions : ø 16 x 33 mm.
  • Connection : ¼"BSPF
  • Nozzle patern : 2 x 45° / 2 x 80° drilled in rotor
  • Cleaning area : ø 20 - ø 80 mm.
  • Flow : 20 ltr./min,
  • Drilled : 4x0,9 mm.
  • Weight : 0,03 kg.

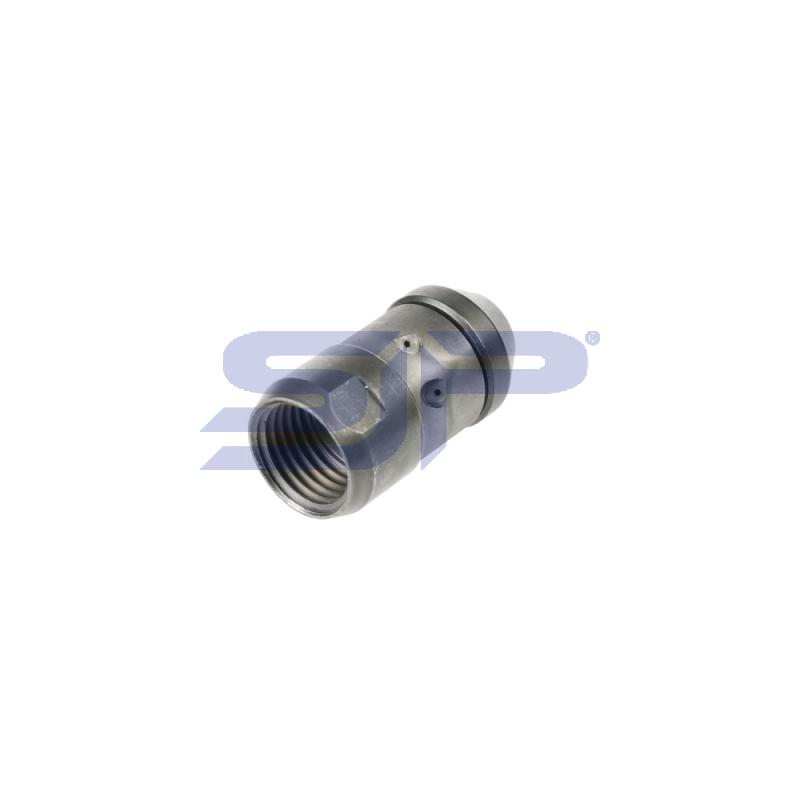

  • Part number : 2915-9920 (P/N Rioned© 26135000500)


  • Flow : 40 ltr./min,
  • Drilled : 4x1,1 mm.
  • Weight : 0,03 kg.
  • Part number : 2915-9940 (P/N Rioned© 26135000500)


Details ø 20 mm. :

  • Dimensions : ø 20 x 40 mm.
  • Connection : ¼"BSPF
  • Nozzle patern : 3 x 45° drilled in rotor
  • Cleaning area : ø 30 - ø 100 mm.
  • Min. flow : 20 ltr./min,
  • Weight : 0,15 kg.

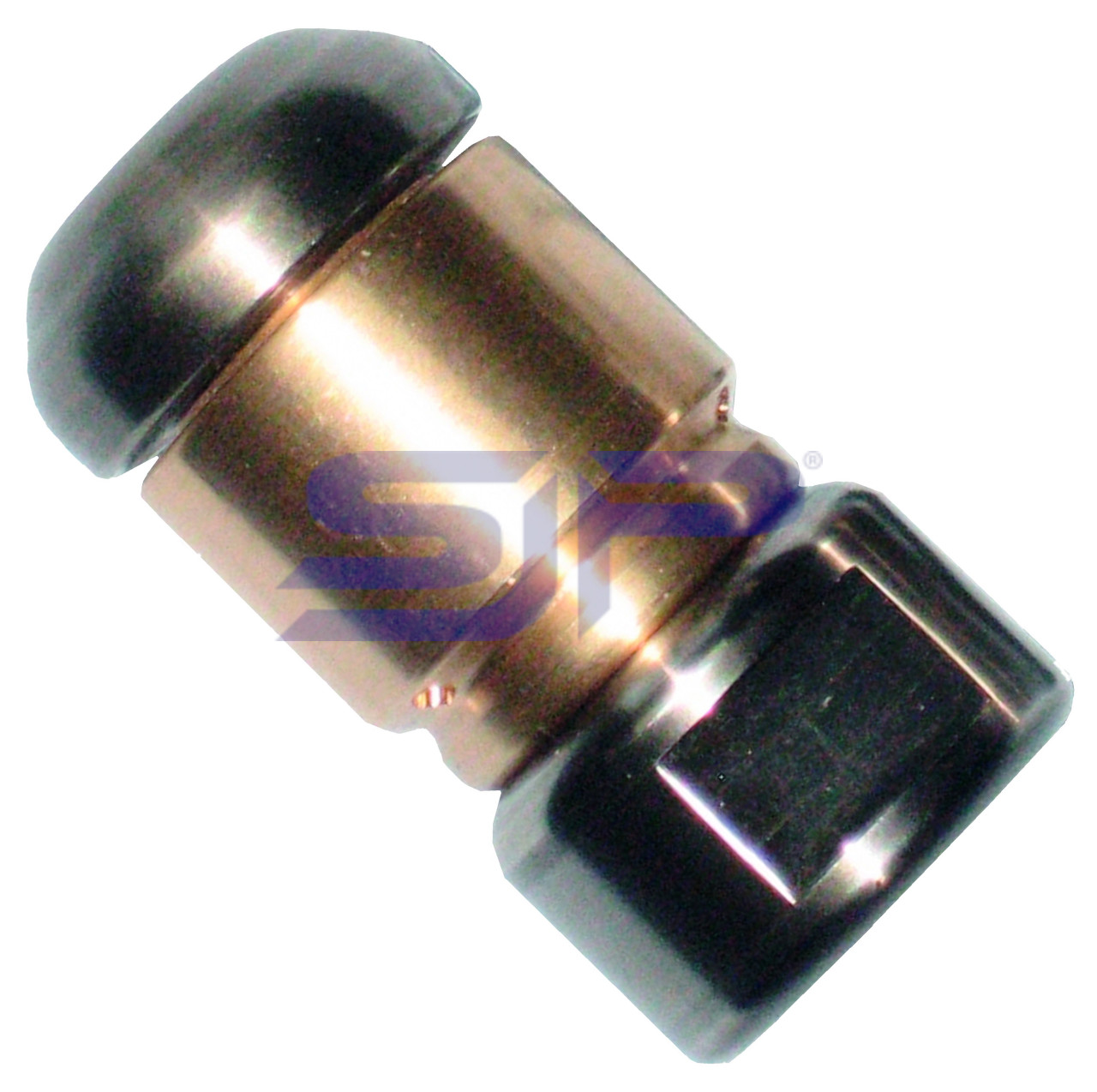

  • Part number : 1364


Details ø 30 mm. :

  • Dimensions : ø 30 x 55 mm.
  • Connection : ¼"BSPF or ⅜"BSPF
  • Nozzle patern : in body : 3 x M4 25° pulling / in rotor: 1 x M4 90° / 1 x M4 75° / 1 x M4 60°
  • Cleaning area : ø 50 - ø 150 mm.
  • Min. flow : 30 ltr./min,
  • Weight : 0,3 kg.
  • Part number ¼"BSPF : 1362 (steel inserts)
  • Part number ¼"BSPF : 1362K (ceramic inserts)
  • Part number ⅜"BSPF : 1360 (steel inserts)
  • Part number ⅜"BSPF : 1360K (ceramic inserts)
  • Nozzle patern : in body : 3 x M4 25° pulling / in rotor: 3 x M4 45°
  • Part number ¼"BSPF : 1362P (steel inserts)
  • Part number ¼"BSPF : 1362PK (ceramic inserts)
  • Part number ⅜"BSPF : 1360P (steel inserts)
  • Part number ⅜"BSPF : 1360PK (ceramic inserts)


Details ø 40 mm. :

  • Dimensions : ø 40 x 75 mm.
  • Connection : ½"BSPF
  • Nozzle patern : in body : 3 x M6 25° pulling / in rotor: 1 x M6 90° / 1 x M6 75° / 1 x M6 60°
  • Cleaning area : ø 100 - ø 200 mm.
  • Min. flow : 40 ltr./min,
  • Weight : 0,5 kg.

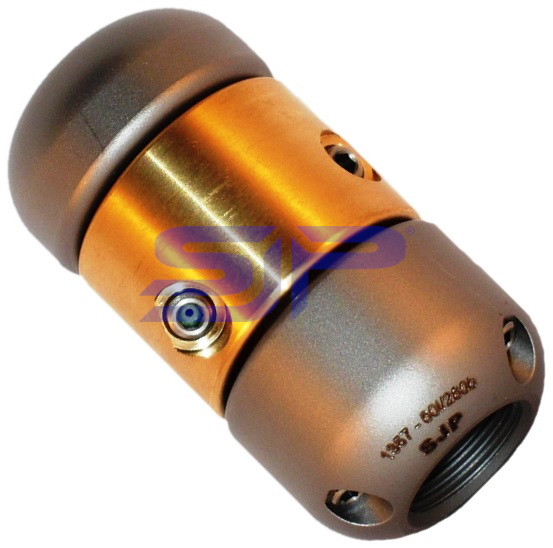

  • Part number : 1357 (steel inserts)
  • Part number : 1357K (ceramic inserts)
  • Nozzle patern : in body : 3 x M6 25° pulling / in rotor: 3 x M6 45°
  • Part number : 1357P (steel inserts)
  • Part number : 1357PK (ceramic inserts)


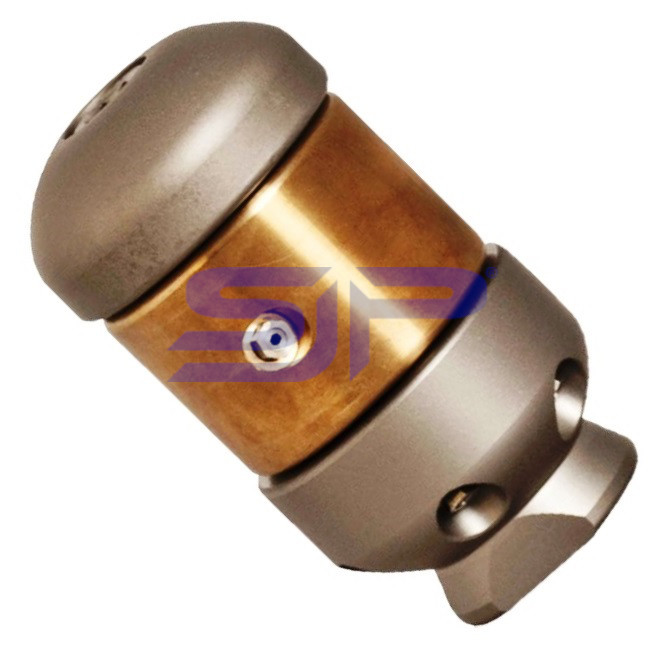

Details ø 50 mm. :

  • Dimensions: ø 50 x 95 mm.
  • Connection : ¾"BSPF
  • Nozzle patern : in body : 6 x M6 25° pulling / in rotor: 1 x M6 90° / 1 x M6 75° / 1 x M6 60°
  • Cleaning area : ø 100 - ø 250 mm.
  • Min. flow : 100 ltr./min,
  • Weight : 1,5 kg.
  • Part number : 1352 (steel inserts)
  • Part number : 1352K (ceramic inserts)


Details ø 60 mm. :

  • Dimensions : ø 60 x 105 mm.
  • Connection : 1"BSPF
  • Nozzle patern : in body : 6 x M6 25° pulling / in rotor: 1 x M6 90° / 1 x M6 75° / 1 x M6 60°
  • Cleaning area : ø 100 - ø 400 mm.
  • Min. flow : 100 ltr./min,
  • Weight : 1,5 kg.
  • Part number : 1351 (steel inserts)
  • Part number : 1351K (ceramic inserts)


Details ø 80 mm. :

  • Dimensions : ø 80 x 140 mm.
  • Connection : 1"BSPF
  • Nozzle patern : in body : 6 x M12 25° pulling / in rotor: 1 x M12 90° / 1 x M12 75° / 1 x M12 60°
  • Cleaning area : ø 150 - ø 400 mm.
  • Min. flow : 260 ltr./min,
  • Weight : 4,2 kg.
  • Part number : 1350 (steel inserts)
  • Part number : 1350K (ceramic inserts)


Details ø 90 mm. :

  • Dimensions : ø 90 x 180 mm.
  • Connection : 1"BSPF
  • Nozzle patern : in body : 6 x M12 25° pulling / in rotor: 1 x M12 90° / 1 x M12 75° / 1 x M12 60°
  • Cleaning area : ø 200 - ø 500 mm.
  • Min. flow : 400 ltr./min,
  • Weight : 6,4 kg.
  • Part number : 1345 (steel inserts)
  • Part number : 1345K (ceramic inserts)


For maintenance : please spray each time after us silicone spray in the inlet side of the nozzle for a longer life and the nozzle will spin straight away when you will use it after a while.

On the video testing type 1360K, controlled speed, no "screaming" , lower speed = better cleaning performance (200 Bar - 80 ltr./min,)
