AP2 Attack nozzles 1000 bar

Product description

Attack® Tips are one of the best quality, long lasting tips.

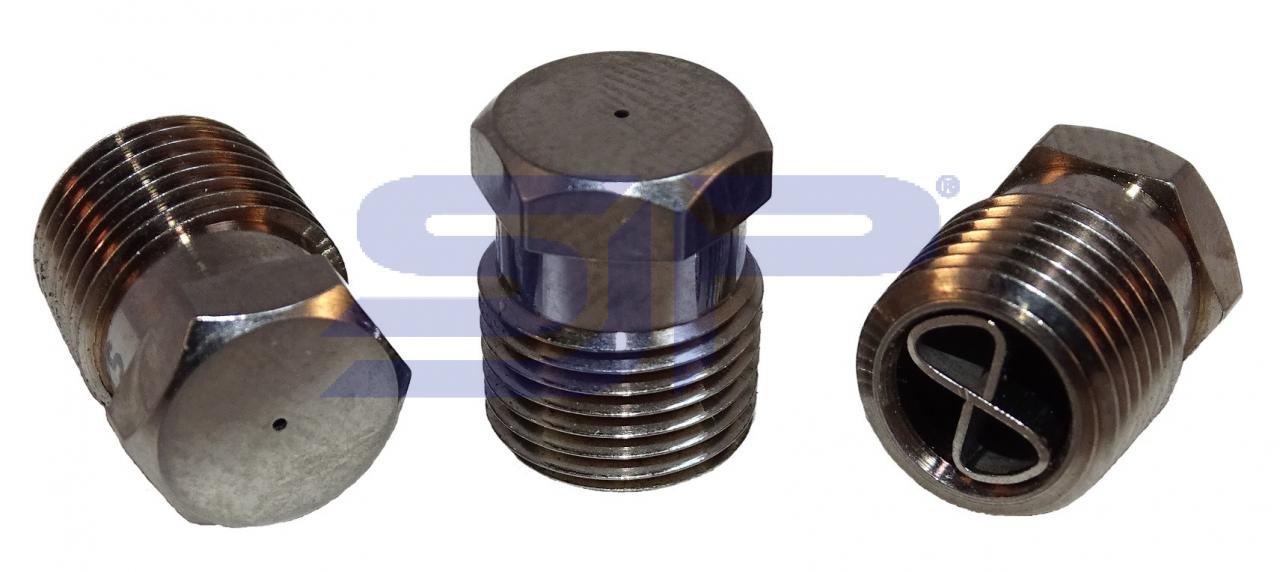

The flow straightener (installed in the most Attack nozzles) corrects power-robbing turbulence, ensuring excellent jetting results

ø .018" (ø 0,46 mm.) P/N : AP2.018
ø .020" (ø 0,51 mm.) P/N : AP2.020
ø .022" (ø 0,56 mm.) P/N : AP2.022
ø .024" (ø 0,61 mm.) P/N : AP2.024
ø .026" (ø 0,65 mm.) P/N : AP2.026
ø .029" (ø 0,74 mm.) P/N : AP2.029
ø .032" (ø 0,81 mm.) P/N : AP2.032
ø .035" (ø 0,89 mm.) P/N : AP2.035
ø .038" (ø 0,97 mm.) P/N : AP2.038
ø .042" (ø 1,07 mm.) P/N : AP2.042
ø .047" (ø 1,19 mm.) P/N : AP2.047
ø .052" (ø 1,32 mm.) P/N : AP2.052
ø .057" (ø 1,45 mm.) P/N : AP2.057
ø .063" (ø 1,60 mm.) P/N : AP2.063
ø .069" (ø 1,78 mm.) P/N : AP2.069
ø .075" (ø 1,91 mm.) P/N : AP2.075
ø .082" (ø 2,08 mm.) P/N : AP2.082
ø .090" (ø 2,29 mm.) P/N : AP2.090
ø .098" (ø 2,48 mm.) P/N : AP2.098
ø .106" (ø 2,69 mm.) P/N : AP2.106
ø .115" (ø 2,92 mm.) P/N : AP2.115
ø .125" (ø 3,18 mm.) P/N : AP2.125
ø .135" (ø 3,43 mm.) P/N : AP2.135
ø .145" (ø 3,68 mm.) P/N : AP2.145
ø .155" (ø 3,94 mm.) P/N : AP2.155
ø .165" (ø 4,19 mm.) P/N : AP2.165

To calculate the correct nozzle you can use attached Nozzle chart, for example : 1100 bar - 18,5 ltr. nozzle P/N AP2.038

Please note, this chart is approximate, so it can be a little different in practice.
