Type 400 RJ ¼"BSPTM
700 Bar
Product description

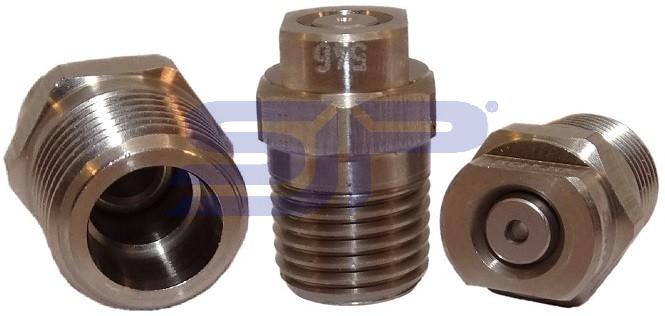

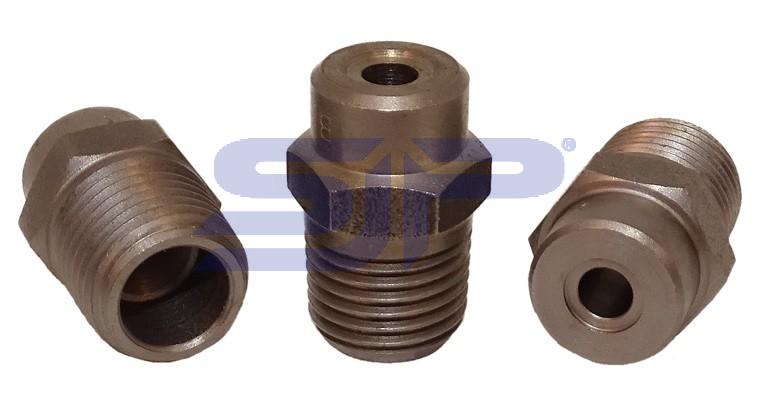

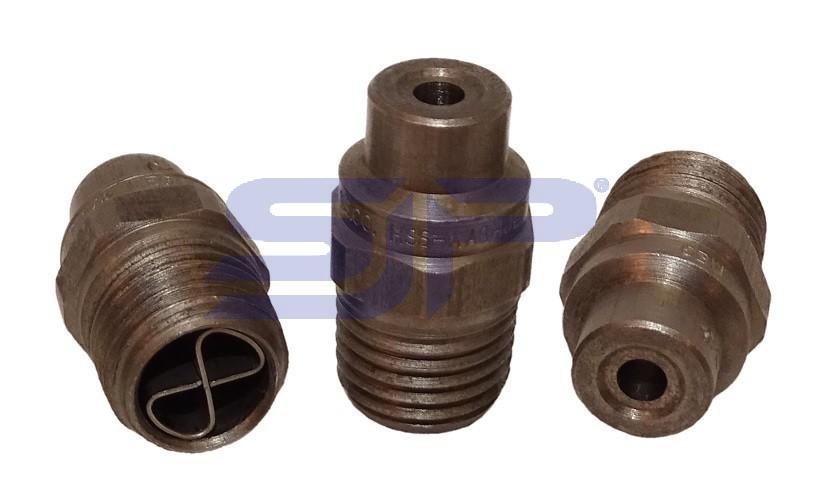

Round jet nozzles are the most effective nozzles in the high pressure industry, they can be used for different applications and easy mounted in a special nozzle holder.
The choice of the nozzle is depended of the experience of the cleaner.
Characteristics and advantages:
- High cleaning achievement
- Easily, simply
- Efficiently
Applications: Surface cleaning – Graffiti removal - Oil and gas platform cleaning - Ship and container cleaning - Road cleaning - Tubing and duct cleaning – used in different tools.
Technical details :
- Dimensions : Hex. 14 x 22 mm. length thread : 10 mm.
- Thread : ¼"BSPTM
- Material body : st. st. 303 (1.4305)
- Material insert : 1.4024
- Partnumber: 4000..+ nozzle number, so nozzle number 070 P/N : 4000070
Compatible with Falch® Style 12 / Uraca® type N / Dynajet® Type A
- Blindplug : inside hex.¼" , length 11,1 mm. P/N : GP 025-P4
To calculate the correct nozzle you can use attached Nozzle chart, for example : 150 bar - 16 ltr. nozzle number 060, please note, this chart is approximate, so it can be a little different in practice.
