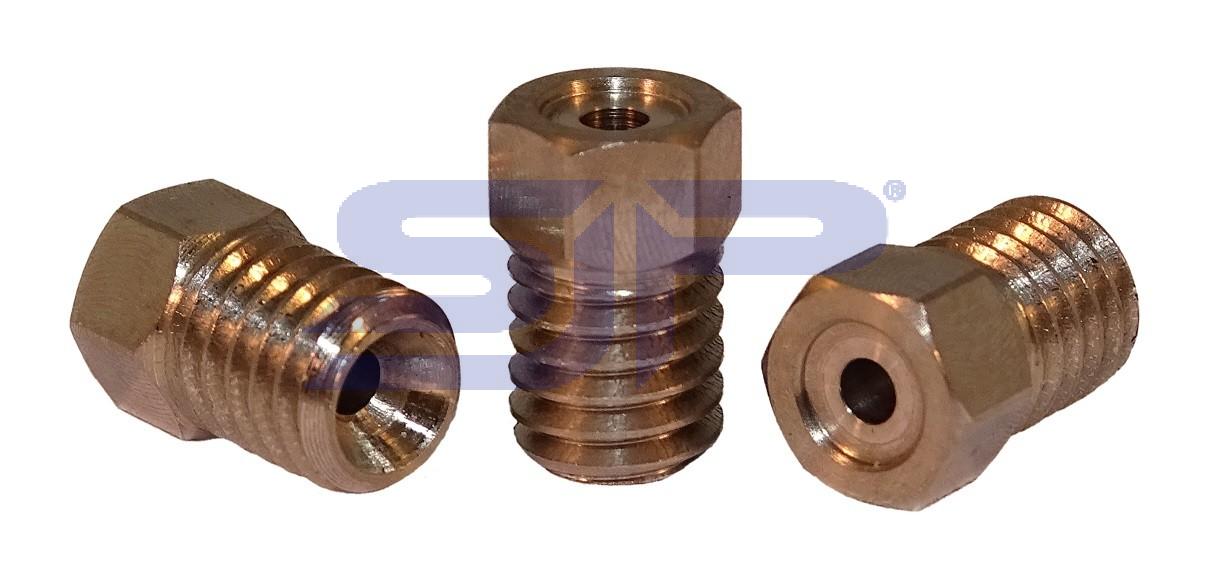

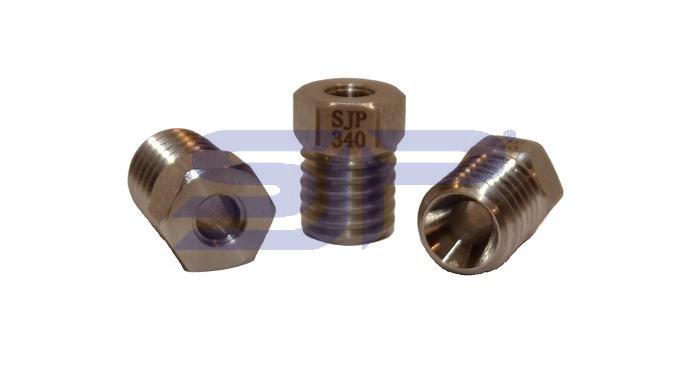

Drilled nozzle inserts outside hex
400 Bar
Product description
This hex. od nozzles mostly used in standard nozzles and rotating nozzles.
Made of stainless steel and do have a raisonnabel life time, not suitalble for recycling units (ceramic the standard).cone inlet give this nozzle a better performance compare with the allen version.
Technical details M4 :
- Dimensions : M6 x 10 mm.
- Hex. : 6 mm.
- Choice orrifice : ø 0,5, 0,6....4 mm.
- Part number : 1567.xxx (e.g. ø 0,8 = 1567.080)
Technical details M8 :
- Dimensions : M8 x 12,2 mm.
- Hex. : 8 mm.
- Choice orrifice : ø 0,5, 0,6....5 mm.
- Part number : 1568.xxx (e.g. ø 0,8 = 1568.080)
Technical details ⅛"BSP :
- Dimensions : ⅛"BSP x 14 mm.
- Hex. : 14 mm.
- Choice orrifice : ø 0,7, 0,8....4 mm.
- Part number : 1564.xxx (e.g. ø 0,8 = 1564.080)
Technical details M10x1 :
- Dimensions : M10x1 x 13,5 mm.
- Hex. : 10 mm.
- Choice orrifice : ø 0,7, 0,8....4 mm.
- Part number : 1563.xxx (e.g.. ø 0,8 = 1563.080)
Technical details ¼"BSP :
- Dimensions : ¼"BSP x 14 mm.
- Hex. : 14 mm.
- Choice orrifice : ø 0,7, 0,8....4 mm.
- Part number : 1561.xxx (e.g. ø 0,8 = 1561.080)
Please use attached nozzle chart to calculate the right orrifce diameter.
