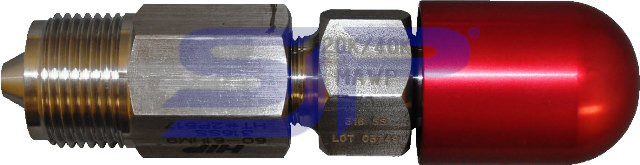

Burst disc holder 2800 bar (40K)
2800 Bar
Product description
A Rupture (Burst) Disc is an essential component in any system which contains a positive displacement pump.
It provides protection against excessive pressure building up in the water blasting equipment connected to a pump.
The holder is a rugged, compact Rupture (Burst) Disc Holder, which offers safety features to prevent the use of coins or other disc substitutes, which may prove dangerous to operators or cause damage to the blasting equipment.
The domed deflector minimizes spray in the event of a disc rupturing and the disc holder body is simple to remove for replacing a disc with the concave side facing pressure side
Connection: 9/16"HP Male (1⅛"-12UNF)
Part Number: 35-008-020

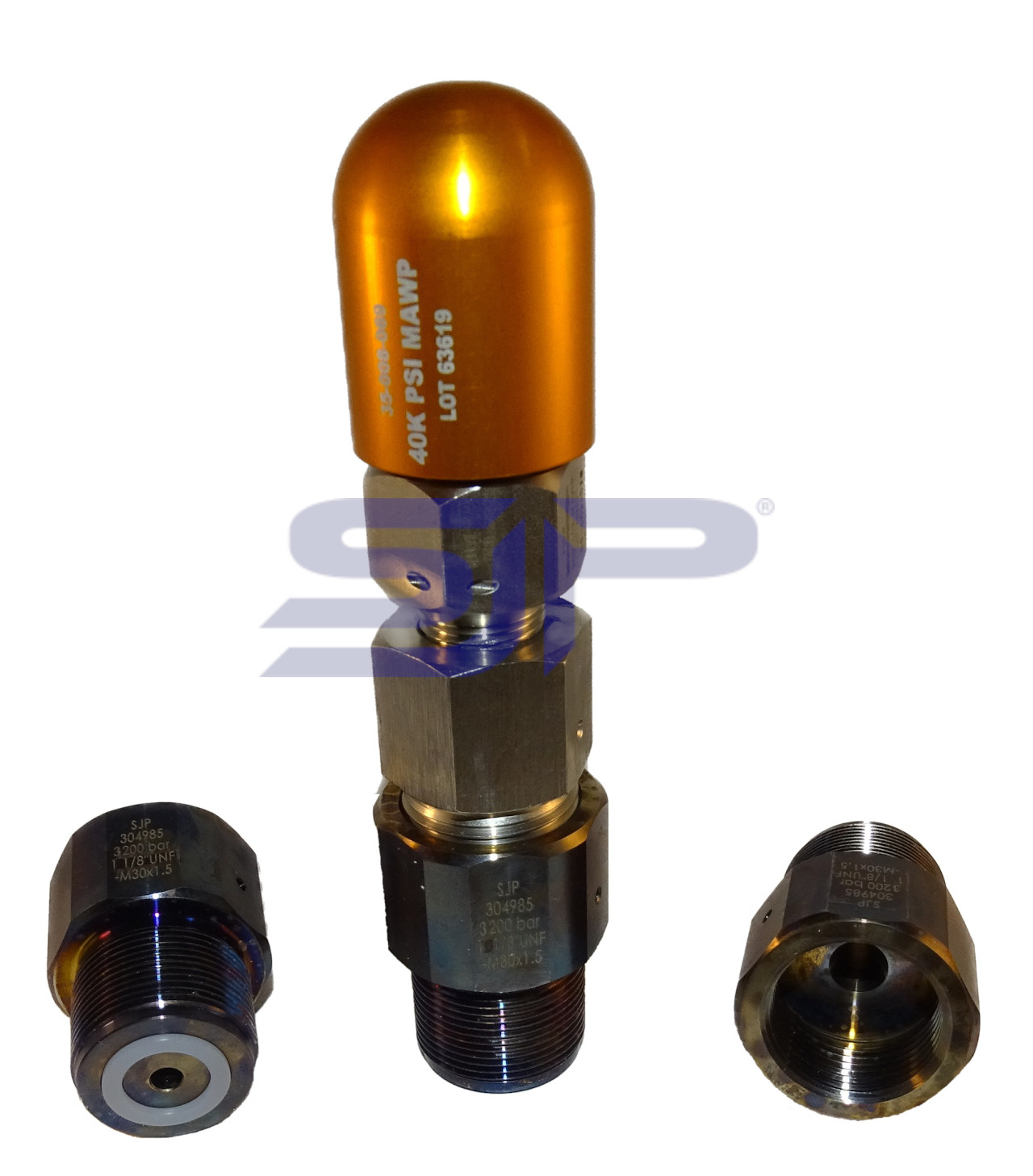

To mount rupture disc holder on a Hammelmann pump you can use adapter 304985
