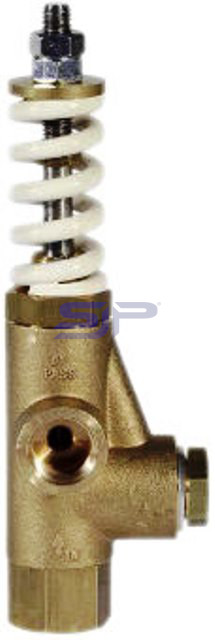

VRP 200

220 Bar

Product description

Safety and pressure regulating valve

Compensated pressure regulating valve with double connection for inlet port.
Regulates the bypass of the fluid with a minimum variation of the pressure.
Suitable to be utilized as a safety valve.

Max. pressure          : 220 bar
Max. flow                  : 30 ltr./min.
Max. temp.               : 60°C
Connection               : ⅜”BSPF
By-pass                      : ⅜”BSPF

Part Number             : 200720
