VS 350

350 Bar

Product description

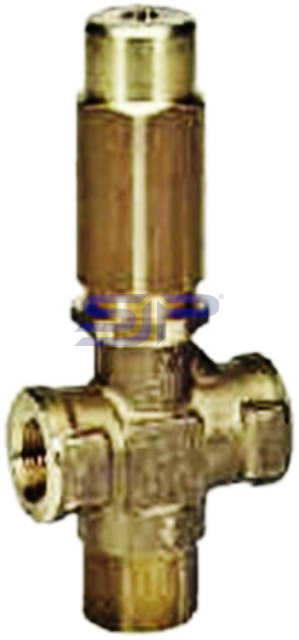

Safety and pressure regulating valve

Compensated pressure regulating valve with double connection for inlet port.
Regulates the bypass of the fluid with a minimum variation of the pressure.
Suitable to be utilized as a safety valve.

Max. pressure          : 350 bar
Max. temp.               : 60°C
Max. flow                  : 25 ltr./min.
Connection              : ⅜”BSPF
By-pass                     : ⅜”BSPF

Part Number            : 200707
