Compact Male - Female

Product description

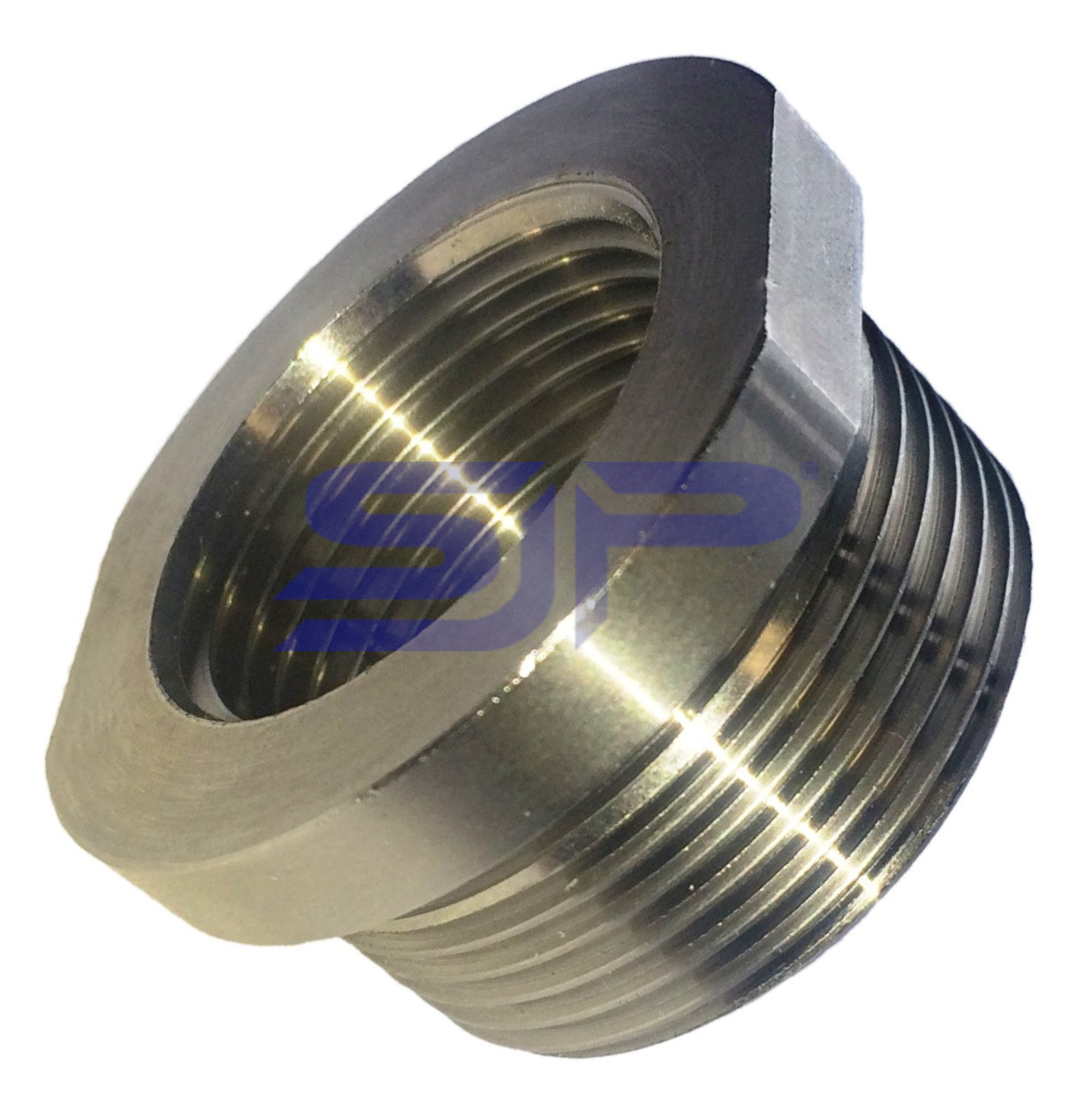

Very compact adapter ring, mostly used in sewer nozzles.

Material : st. steel 304

• ⅛"BSPF - ¼"BSPM Length 17 mm. Flat sides 14 mm. P/N: 4101
• ⅛"BSPF - ⅜"BSPM Length 17 mm. Flat sides 19 mm. P/N: 4103
• ⅛"BSPF - ½"BSPM Length 21 mm. Flat sides 22 mm. P/N: 4106
• ¼"BSPF - ⅜"BSPM Length 17 mm. Flat sides 19 mm. P/N: 4102
• ¼"BSPF - ½"BSPM Length 21 mm. Flat sides 22 mm. P/N: 4105
• ¼"BSPF - ¾"BSPM Length 24,5 mm. Flat sides 30 mm. P/N: 4107
• ¼"BSPF - 1"BSPM Length 27 mm. Flat sides 36 mm. P/N: 4113
• ⅜"BSPF - ½"BSPM Length 21 mm. Flat sides 22 mm. P/N 4104
• ⅜"BSPF - ¾"BSPM Length 24,5 mm. Flat sides 30 mm. P/N 4108
• ⅜"BSPF - 1"BSPM Length 27 mm. Flat sides 36 mm. P/N 4112
• ½"BSPF - ¾"BSPM Length 24,5 mm. Flat sides 30 mm. P/N 4109
• ½"BSPF - 1"BSPM Length 27 mm. Flat sides 36 mm. P/N 4111
• ½"BSPF - 1¼"BSPM Length 32,5 mm. Flat sides 46 mm. P/N 4116
• ½"BSPF - 1½"BSPM Length 32,5 mm. Flat sides 50 mm. P/N 4119
• ¾"BSPF - 1"BSPM Length 27 mm. Flat sides 36 mm. P/N 4110
• ¾"BSPF - 1¼"BSPM Length 32,5 mm. Flat sides 46 mm. P/N 4115
• ¾"BSPF - 1½"BSPM Length 32,5 mm. Flat sides 50 mm. P/N 4118
• 1"BSPF - 1¼"BSPM Length 32,5 mm. Flat sides 46 mm. P/N 4114
• 1"BSPF - 1½"BSPM Length 32,5 mm. Flat sides 50 mm. P/N 4117
• 1¼"BSPF - 1½"BSPM Length 32,5 mm. Flat sides 50 mm. P/N 4120

For a good sealing between adapter - bomb / granate please use the bluw Loctite 243 (click here)

(Ring with the flat sides is to small to use a multi (Dawwty - bounded) seal)
