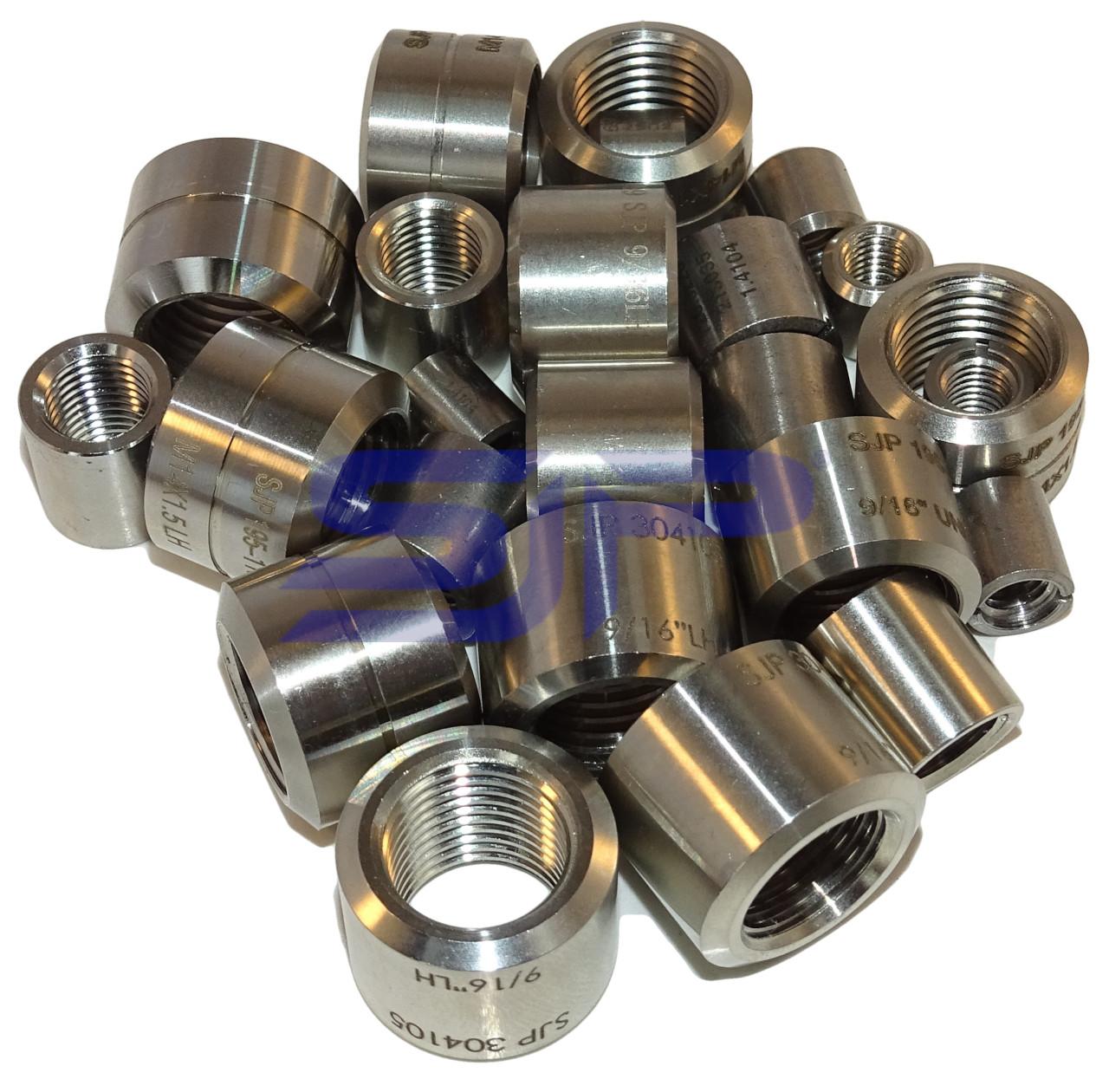

Collars

Product description

Collars all left hand thread

  • ¼”UHP (for M16 gland nut) ø 9 x 10 mm. Part Number: 720.0320

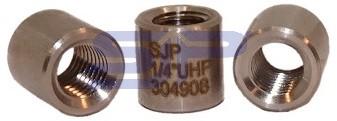

  • ¼”UHP (for 9/16" gland nut) ø 9,5 x 9,5 mm. Part Number: 304908 (Compatible Jetstream ® P/N : 28651 )
  • ⅜”UHP (for M20 gland nut) ø 13 x 12 mm. Part Number: 720.0220

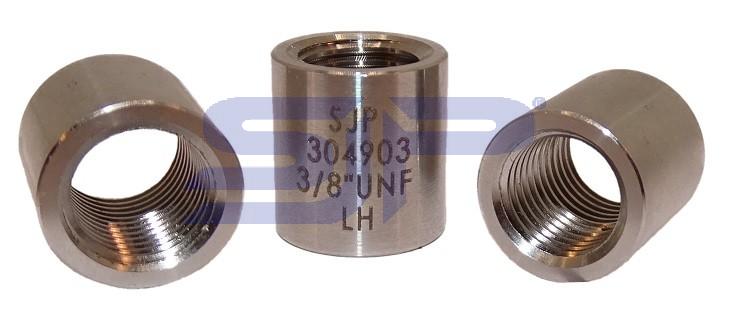

  • ⅜”UHP (for ¾” gland nut) ø 12 ,7 x 13,5 mm. Part Number: 304903 (Compatible Jetstream ® P/N : 28175 )

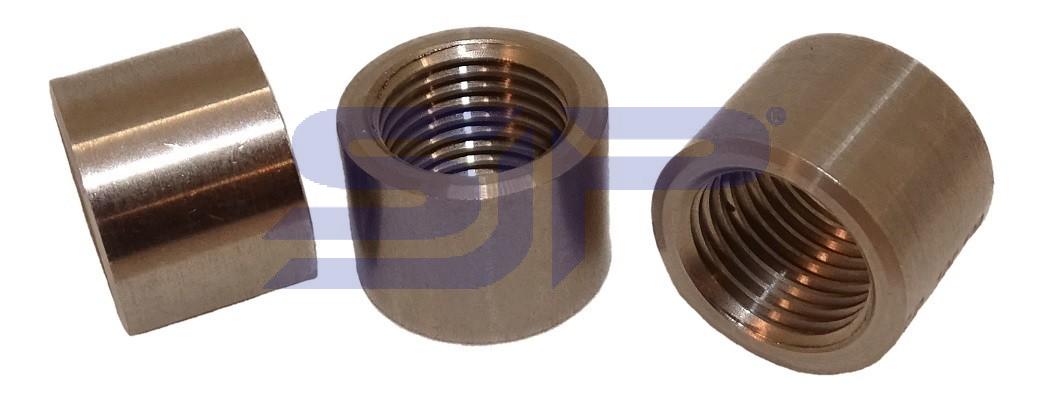

  • 9/16”UHP (for M26 gland nut) ø 18,8 x 14 mm. Part Number: 195-109

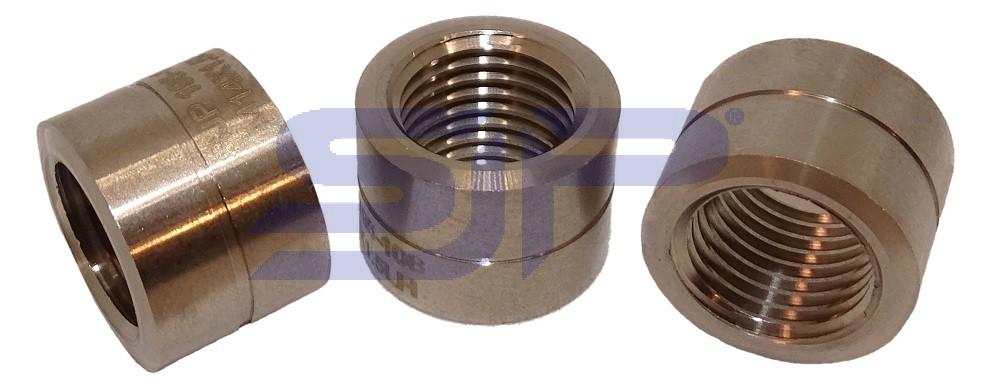

  • M14x1,5 (for M26 gland nut) ø 18,8 x 14 mm. Part Number: 195-108 (Compatible Hammelmann® 04.05992.0310 )

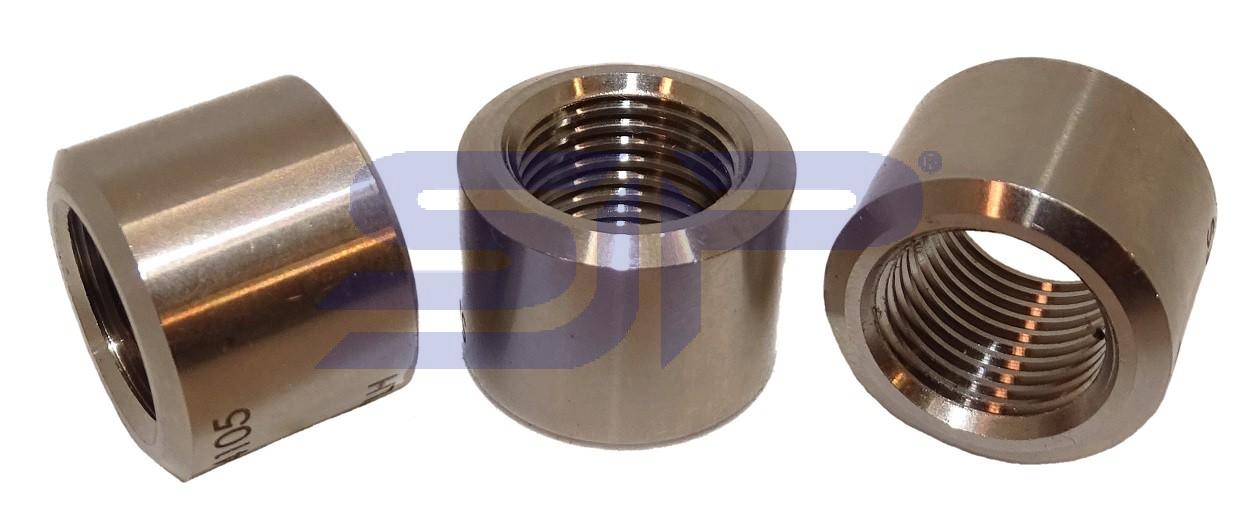

  • 9/16”UHP (for M30 or 1⅛"” gland nut) ø 20,5 x 16 mm. Part Number: 304105 (Compatible Jetstream ® P/N : 27510 )

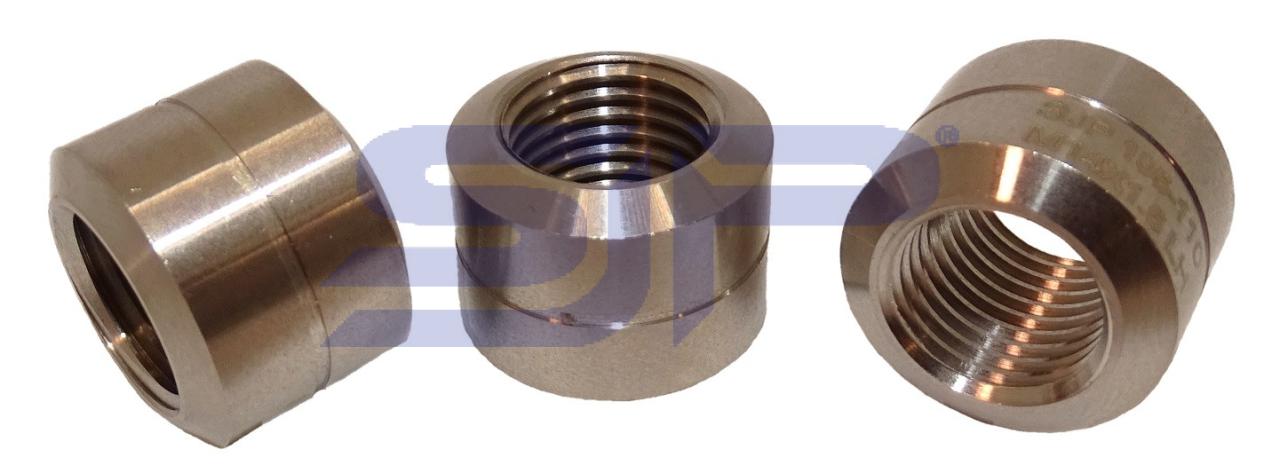

  • M14x1,5 (for M30 or 1⅛"” gland nut) ø 20,5 x 16 mm. Part Number: 195-110

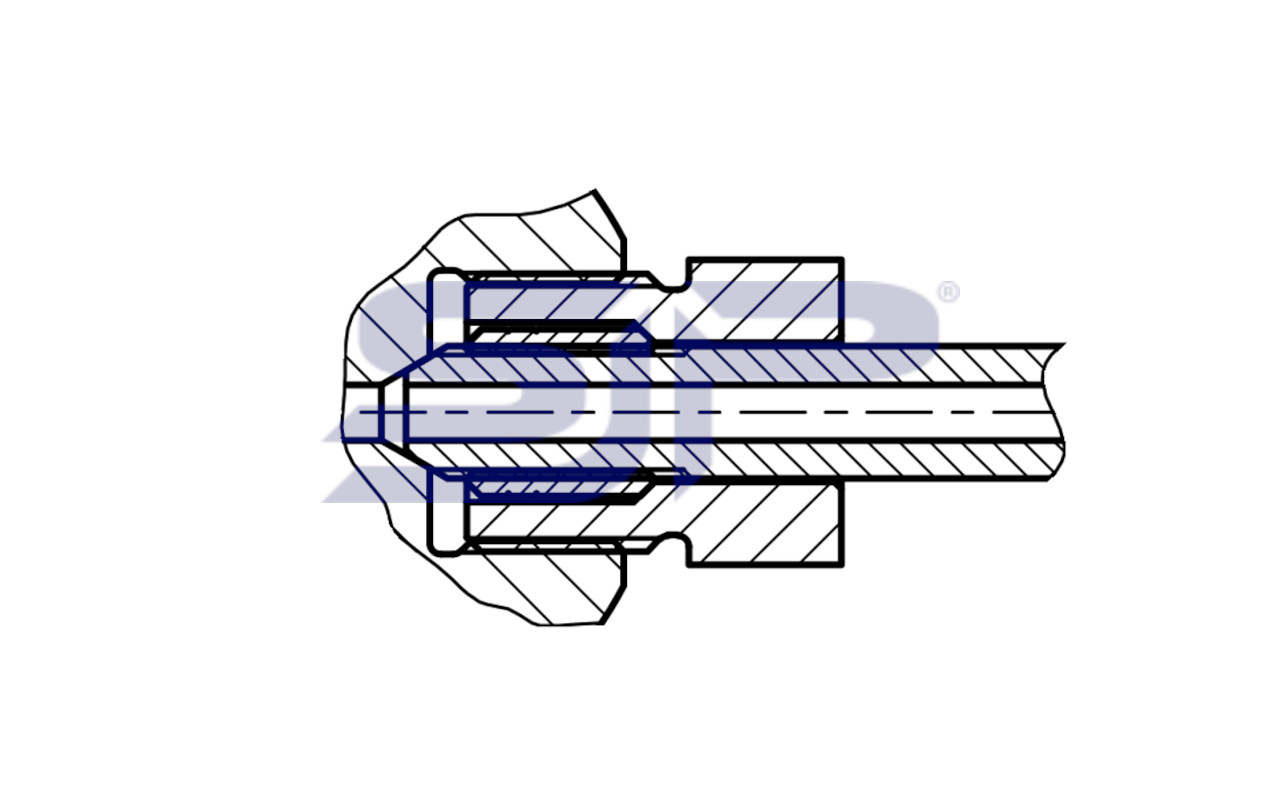

Open attached drawings for more details
