Pipe Wolf

Product description

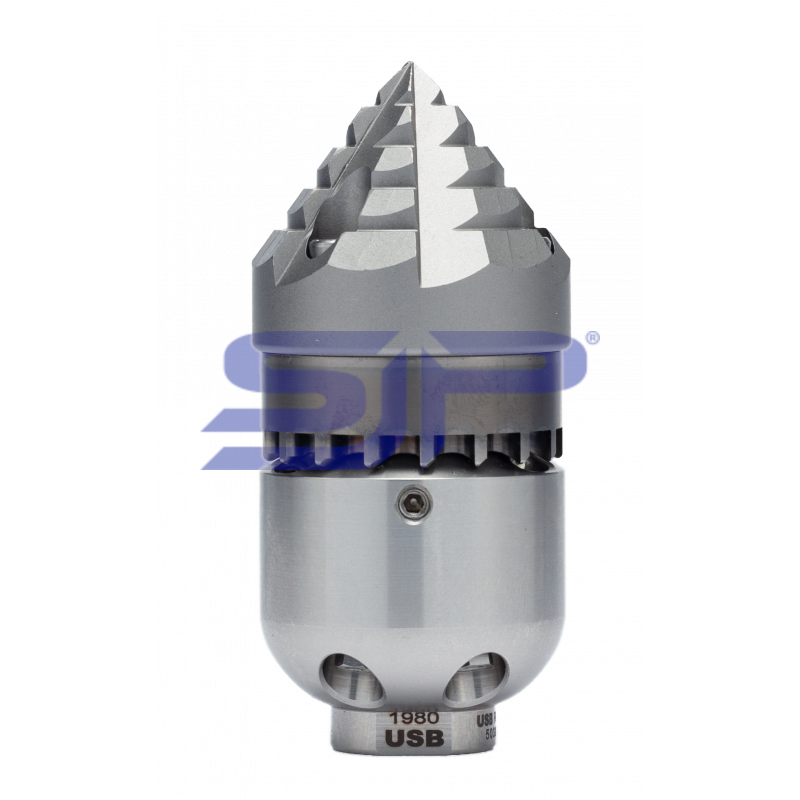

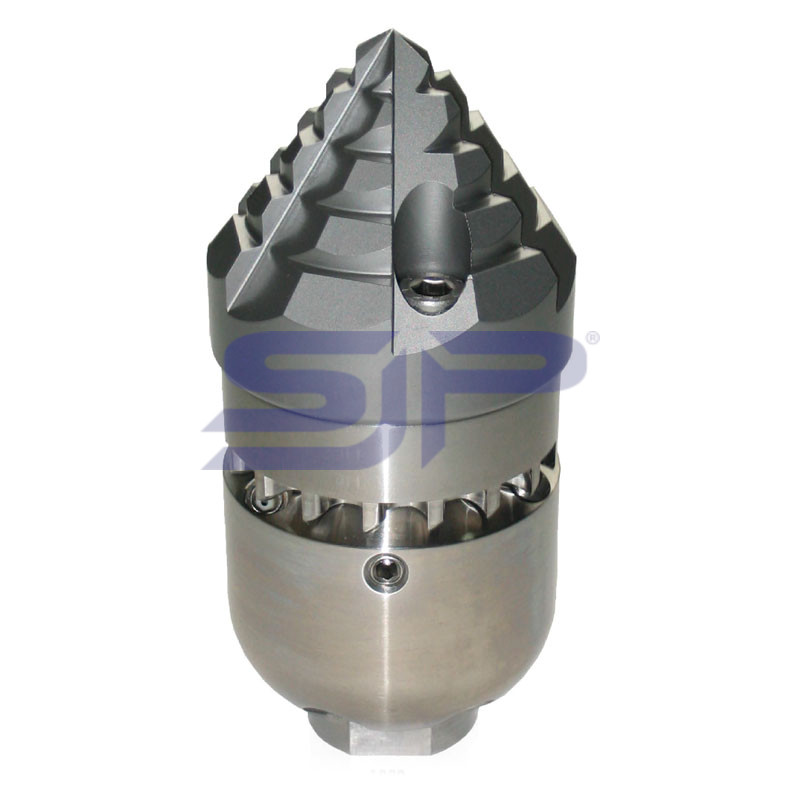

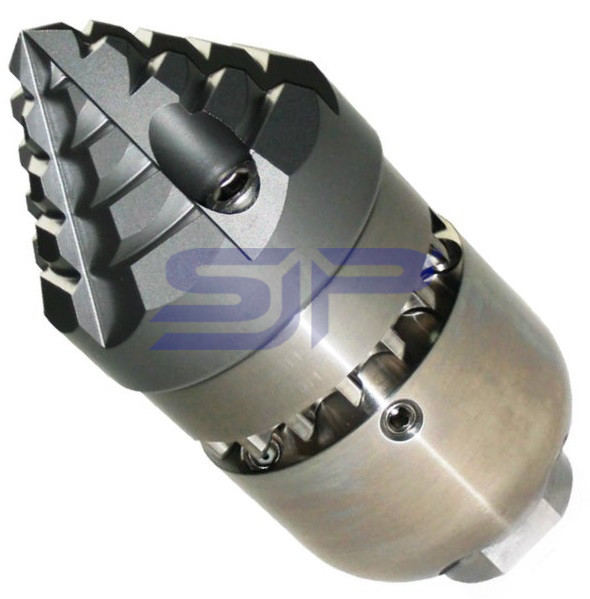

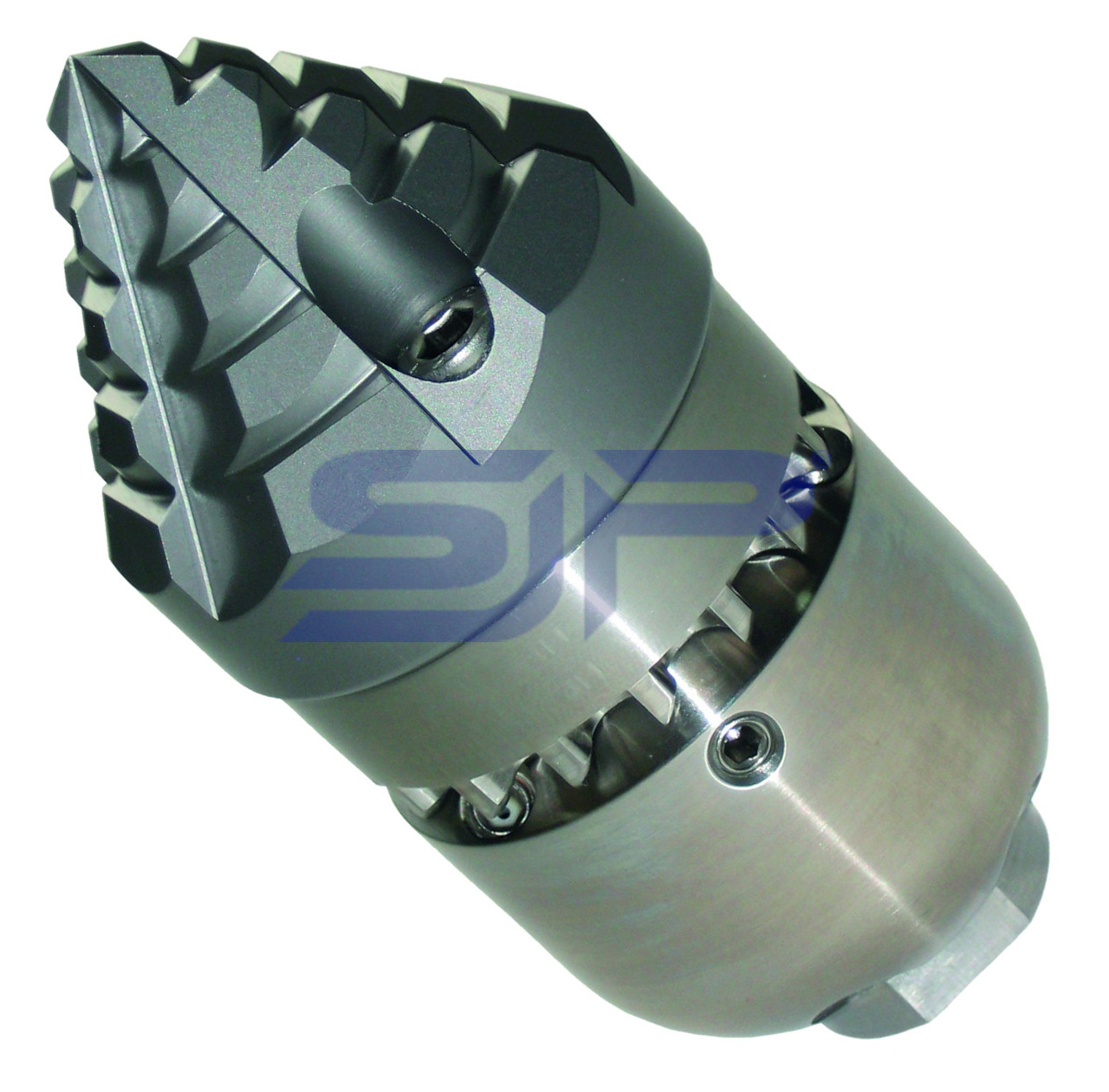

Pipe Wolf

The Pipe Wolf is a unique nozzle with a tempered stainless steel head is turbine driven (therefore more powefull compare with the Rotor Wolf) and spins at approx. 6000 - 12000 rpm.

For extreme applications, this is a highly efficient tool.

The Pipe Wolf succeeds where standard hydrodynamic tools fail, this increasing your productivity and reducing your operating cost.

The Pipe Wolf should be a standard sewer cleaning tool on your truck, it is very impressive.

Advantages:

• Low maintenance, no lubrication required
• Capable of being used with recycled water
• Reduced water consumption
• Reduced operating costs

Applications:

• Total obstructions and blockages caused by roots, silt, grease etc.

Technical Specs:

• Advanced Optimized 3D Hydro Mechanics™
• Replaceable threaded ceramic nozzle inserts
• Stainless steel body & tempered stainless steel head

Details ø 50 mm. :

• Dimensions : ø 54 x 116 mm.
• Connection : ½"BSPF
• Nozzle patern : in body : 6 x M6 22° pulling - turbine drive ; 3 x M6
• Cleaning area : ø 100 - ø 150 mm.
• Min. flow : 40 ltr./min,
• Weight : 1,1 kg.
• Part number : 1980 (steel nozzle inserts)
• Part number : 1980K (ceramic inserts)

26300200072

Details ø 70 mm. :

• Dimensions : ø 72 x 160 mm.
• Connection : 1"BSPF
• Nozzle patern : in body : 6 x M8 22° pulling - turbine drive ; 3 x M6
• Cleaning area : ø 150 - ø 200 mm.
• Min. flow : 100 ltr./min,
• Weight : 2,6 kg.
• Part number : 1982 (steel nozzle inserts)
• Part number : 1982K (ceramic inserts)

Details ø 90 mm. :

• Dimensions : ø 95 x 190 mm.
• Connection : 1¼"BSPF
• Nozzle patern : in body : 6 x M12 22° pulling - turbine drive ; 3 x M6
• Cleaning area : ø 150 - ø 250 mm.
• Min. flow : 200 ltr./min,
• Weight : 5,4 kg.
• Part number : 1984 (steel nozzle inserts)
• Part number : 1984K (ceramic inserts)
