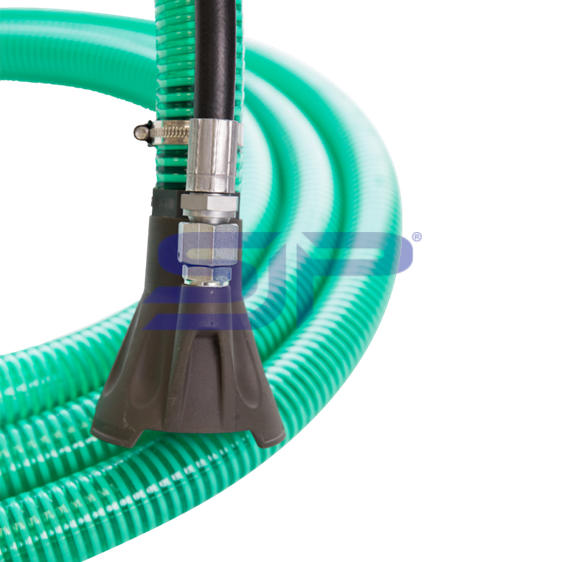

Suction Venturi ½"BSP male hose connection
200 Bar
Product description

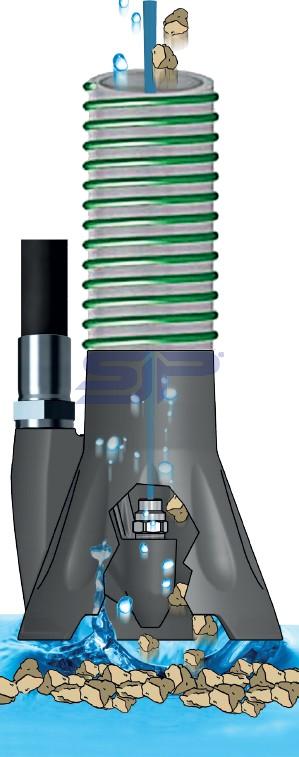

Every high pressure water pump is a potential vacuum pump. Just connect this suction venturi deceive to the end your pressure hose.
Extracts stones (up to 20 mm), mud, dirt, sand, algae & sediment. Operating pressure min. 80 bar at 7 l/min. Suction power of approx. 8,000 to 18,000 l/h. Spiral hose: DN 38 mm, length 5 mtr.
Sample : 150 bar - 12 ltr./min., capacity ± 220 ltr./min. = ± 13.000 ltr./h.
Nozzle Size :
- 040 Part number : 5455240
- 045 Part number : 5455245
- 050 Part number : 5455250
- 055 Part number : 5455255
- 060 Part number : 5455260
- 065 Part number : 5455265
- 070 Part number : 5455270
- 080 Part number : 5455280
Andy Guest Jetters® SKU ; 400132
