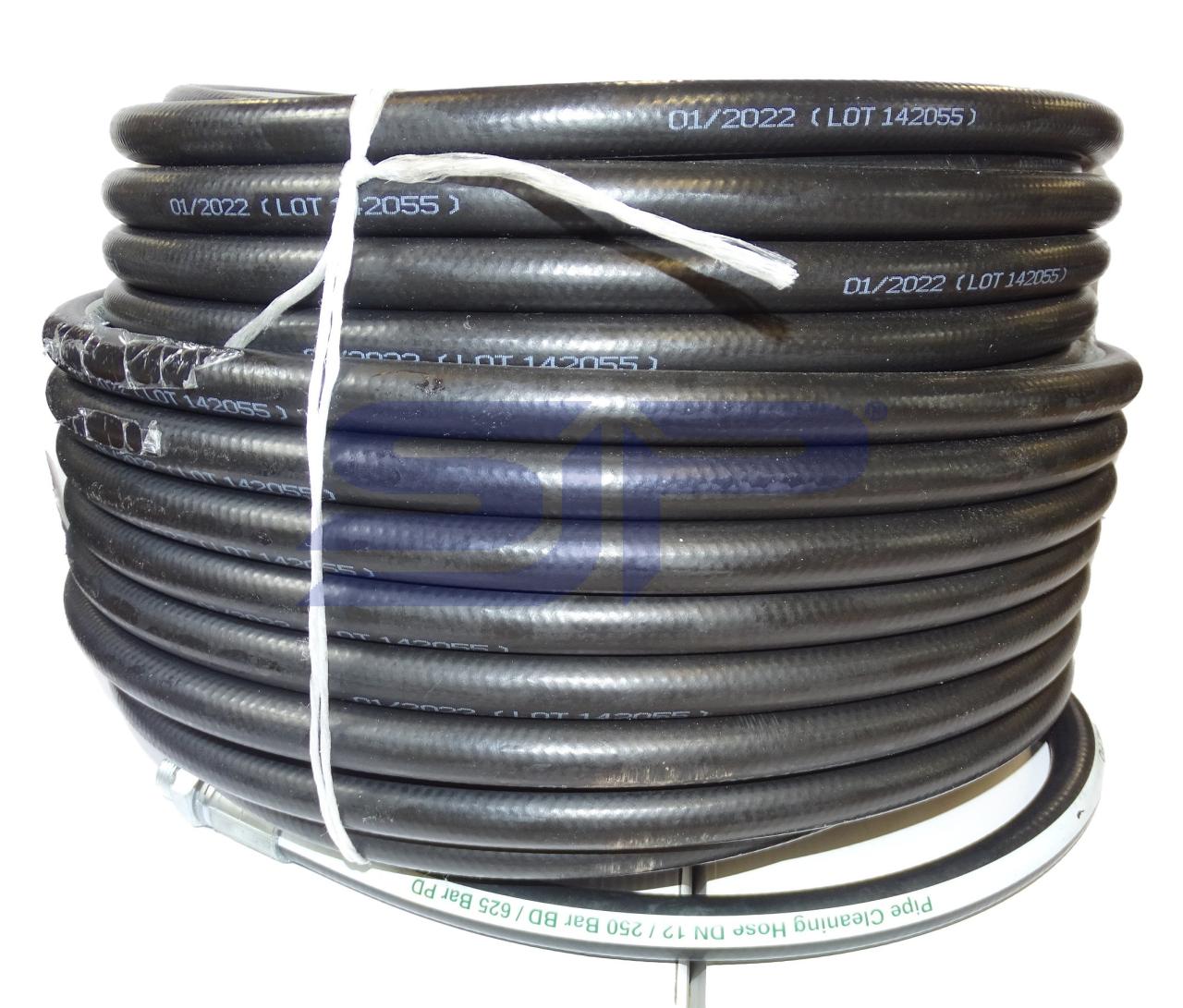

GrüloPipe Sewer Hose

Product description

Rubber High Pressure Sewer Cleaning Hose.

GrüloPipe hoses are very flexible - smooth outside, abrasion - pressure - and oil resistant

Mounted on hose reel on mobile units.

Norm : EN 853 1 SN (R1 AT)

• Material outside      : Synthetic rubber
• Material inside        : Synthetic rubber
• Layers           : 1 (steel)
• Colour            : black
• Temp             : -40°C -> +90°C

• ⅜"Hose :
• Inside diameter     : ø 10 mm
• Outside diameter    : ø 18 mm.
• Bend radius        : 130 mm
• Weight            : 320 gr./mtr.
• Any length available up too 120 mtr..
• Standard lengths ⅜"BSP male (nozzle) - ⅜"BSP swivel nut (hose reel)*
• * You also can choice : male - male / female - female connections.
• 60 mtr. : Part number : 10550-009-060
• 80 mtr. : Part number : 10550-009-080
• 100 mtr. : Part number : 10550-009-100
• 120 mtr. : Part number : 10550-009-120

• ½"Hose
• Inside diameter ½" hose   : ø 13 mm
• Outside diameter       : ø 21 mm.
• Bend radius           : 180 mm
• Weight              : 420 gr./mtr.
• Any length available up too 240 mtr.
• Standard lengths ½"BSP male (nozzle) - ½"BSP swivel nut (hose reel)*
• * You also can choice : male - male / female - female connections.
• 60 mtr. : Part number : 10550-013-060
• 80 mtr. : Part number : 10550-013-080
• 100 mtr. : Part number : 10550-013-100
• 120 mtr. : Part number : 10550-013-120
• 240 mtr. : Part number : 10550-013-240

On the nozzle end this ½" hose is available with round - ultra short press fitting, easier through bends and easier to pull back.

If you like this short nozzle end, you can put "S" (short) behind the part number and the hose will be pressed (at a small additional cost) with this short adapter.

• 5/8"Hose
• Inside diameter 5/8" hose   : ø 16 mm
• Outside diameter       : ø 24 mm.
• Bend radius           : 210 mm
• Weight              : 520 gr./mtr.
• Any length available up too 120 mtr.
• Standard lengths 5/8"BSP male (nozzle) - 5/8"BSP swivel nut (hose reel)*
• * You also can choice : male - male / female - female connections.
• 60 mtr. : Part number : 10550-016-060
• 80 mtr. : Part number : 10550-016-080
• 100 mtr. : Part number : 10550-016-100
• 120 mtr. : Part number : 10550-016-120

• ¾"Hose
• Inside diameter ¾" hose   : ø 19 mm
• Outside diameter       : ø 27 mm.
• Bend radius           : 240 mm
• Weight              : 710 gr./mtr.
• Any length available up too 120 mtr.
• Standard lengths ¾"BSP male (nozzle) - ¾"BSP swivel nut (hose reel)*
• * You also can choice : male - male / female - female connections.
• 60 mtr. : Part number : 10550-019-060
• 80 mtr. : Part number : 10550-019-080
• 100 mtr. : Part number : 10550-019-100
• 120 mtr. : Part number : 10550-019-120

Please note by changing the hose on your hose reel :

It's always advisable to put pressure on the hose before you wind it up the first time.

So completely unroll the new hose and connect it to the hose reel, mount the nozzle on the hose and put pressure on the hose (pressure you always use to work with)

All the windings are out of the hose and the hose expanded a bit, now you can take the pressure of and wind the hose nice and neatly with a towel over the hose, the towle will clean the hose and the dirt won't press in the outside of the hose what can give little demage on the hose.

When you start working with the hose, the hose inside that you don't use do have enough room to expand, if you didn't put pressure on the hose at the beginning the hose stay small and don't have enough room to expand, the hose can get demage like cracks and not usable anymore
