Superstream 2K

385 Bar

Product description

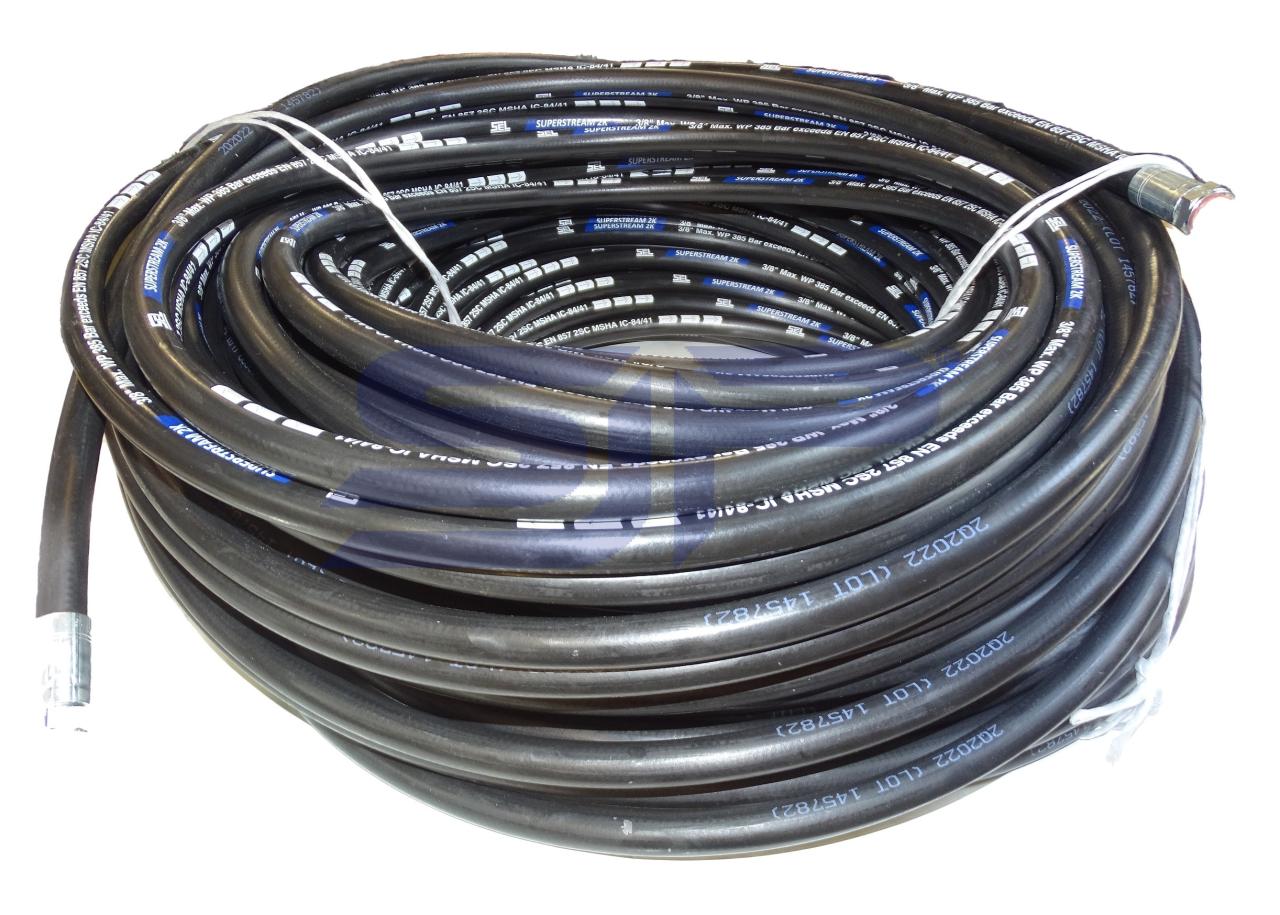

Rubber High Pressure Hose, als suitable for hydraulic hose.

Superstream hoses are very flexible (check the bend radius) - smooth outside, abrasion - pressure - and oil resistant

Norm : EXCEED EN 857 TYPE 2 SC, EXCEED ISO 11237-1 2SC, ISO 1307.

  • Material outside      : Synthetic rubber MSHA approved
  • Material inside        : Synthetic rubber
  • Layers           : 2 (steel)
  • Colour            : black
  • Temp             : -40°C -> +100°C



  • "Hose :
  • Inside diameter     : ø 9,5 mm
  • Outside diameter    : ø 17,1 mm.
  • Bend radius        : 70 mm
  • Weight            : 440 gr./mtr.
  • Any length available up too 120 mtr..
  • Standard lengths ⅜"BSP male (nozzle) - ⅜"BSP swivel nut (hose reel)*
  • You also can choice : male - male / female - female connections.
  • Mostly ⅜"BSP male both ends so you can switch the hose around when one side is wearing our or demage.
  • 50 mtr. : ½"BSP male (nozzle) - ½"BSP Swivelnut (reel) , P/N : 0385002
  • 60 mtr. : ⅜"BSP male both ends. P/N : 0385003
  • 80 mtr. : ⅜"BSP male both ends. P/N : 0385004
  • 100 mtr. : ⅜"BSP male both ends. P/N : 0385001
