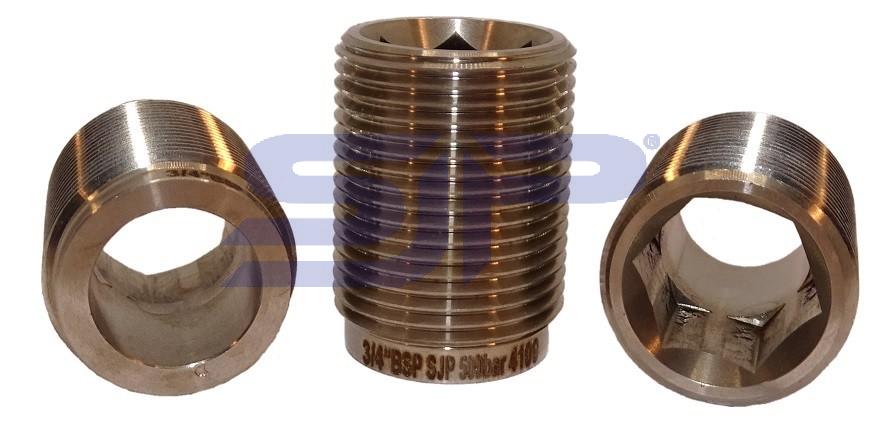

¾"BSPM - ¾"BSPM full thread

500 Bar

Product description

Ideal ¾"BSP adapter when there is little space and the adapter should remain compact as possible, the adapter is mounted in the female thread with an Allan key,

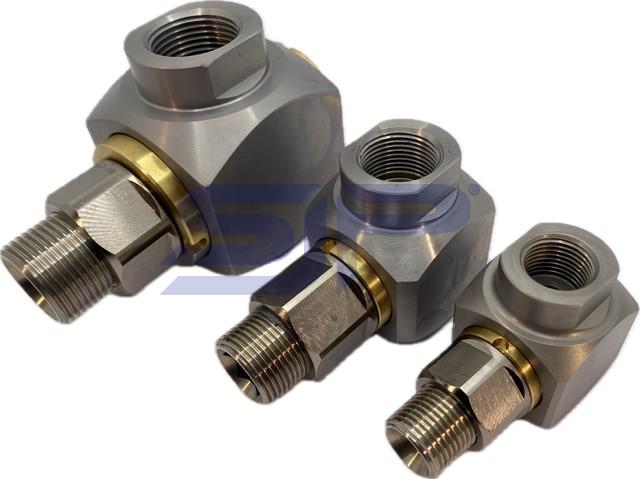

Mostly used on hose reels, with this adapter, keep the 90° swivels closed as possible to the reel and not sticking out to much,.

Can also be used when you require male thread on a nozzle and the nozzle must remain short as possible (bends) , then mount the adapter with Loctite 270 for permanent mounting and good sealing.

  • Connections : ¾"BSPM (hose connection 60° + allen 17) - ¾"BSPM Flat
  • Dimensions : allen 17 x 36 mm.
  • ID : ø 17 mm.
  • Material : stainless steel 316 (chemical resistant)
  • Part number : 4109

Open attached drawing for more information
