Primus III (1¼")

350 Bar

Product description

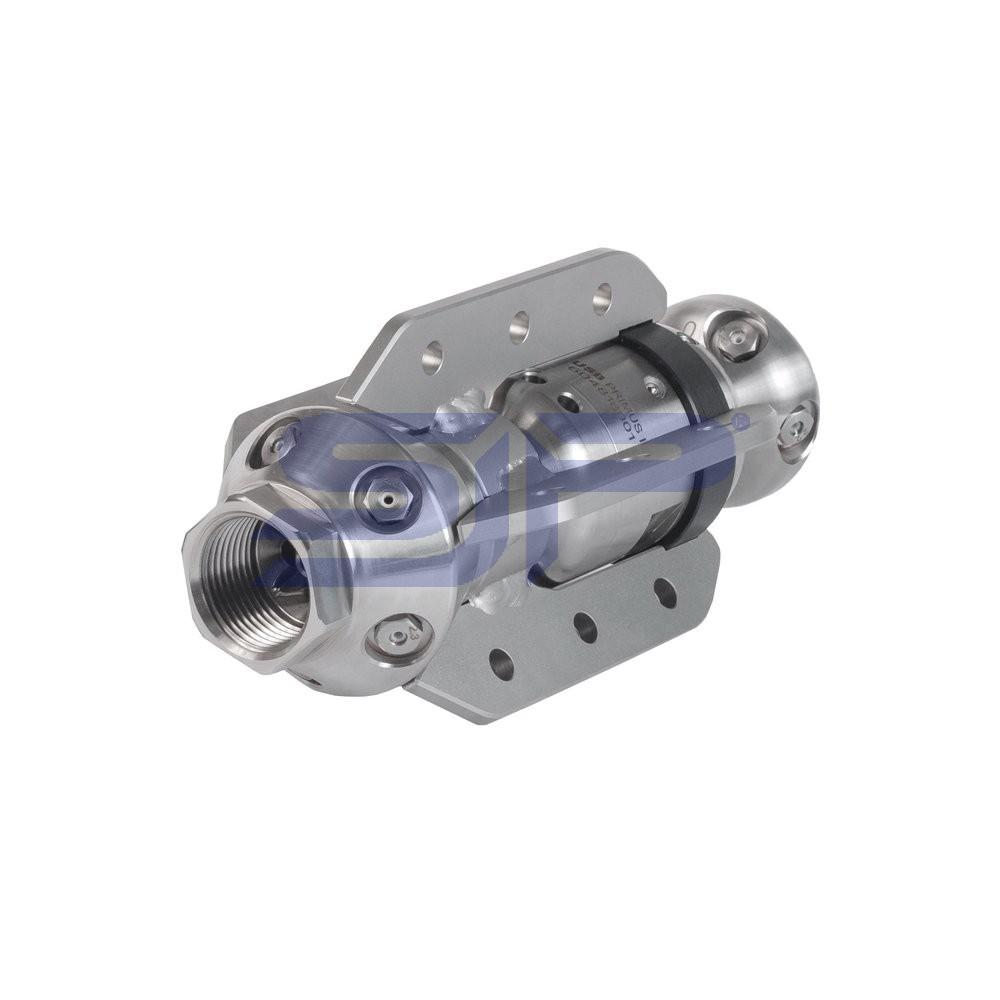

Primus III™ Nozzles were developed and precisely manufactured in Germany to meet to the highest technical standards.

Tempered stainless steel is the primary material of its construction, allowing the nozzle to be operated by pressurized potable or recycled water.

High performance ceramic clutch discs and angles of jet incidence in the cleaning head control the speed of rotation.

These nozzles require no lubrication or replacement of internal mechanical parts during the first year of operation, making this nozzle very user-friendly.

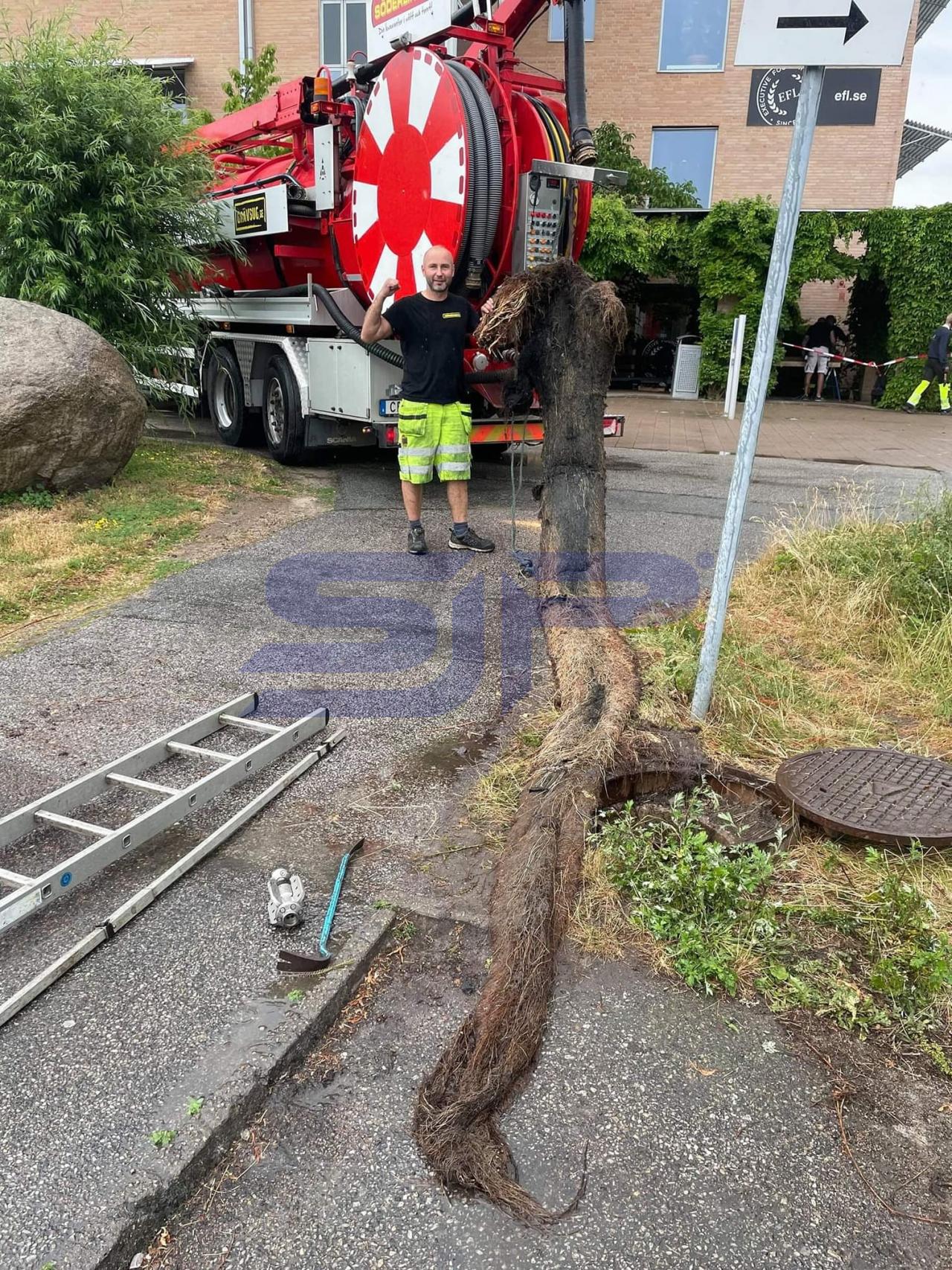

Grease, mineral deposits and small roots don’t stand a chance against the Primus III ™

  • Dimensions : Ø 150 x 220 mm
  • Weight : 9,5 kg.
  • Connection : 1¼"BSP female
  • Water consuming from 300 ltr./min. - 600 ltr./min.
  • Max. Working pressure up to 350 bar
  • Effective cleaning area Ø 200 - Ø 600 mm. (8"- 24")
  • Nozzle Patern : 5x¼"BSP puling-4x¼"BSP rotating head-1x¼"BSP front 15° of centre, all ceramic inserts
  • Part number Primus III complete : 5020
  • Primus III Poly-Fin Centralizer Ø 300 mm.(12") please click here

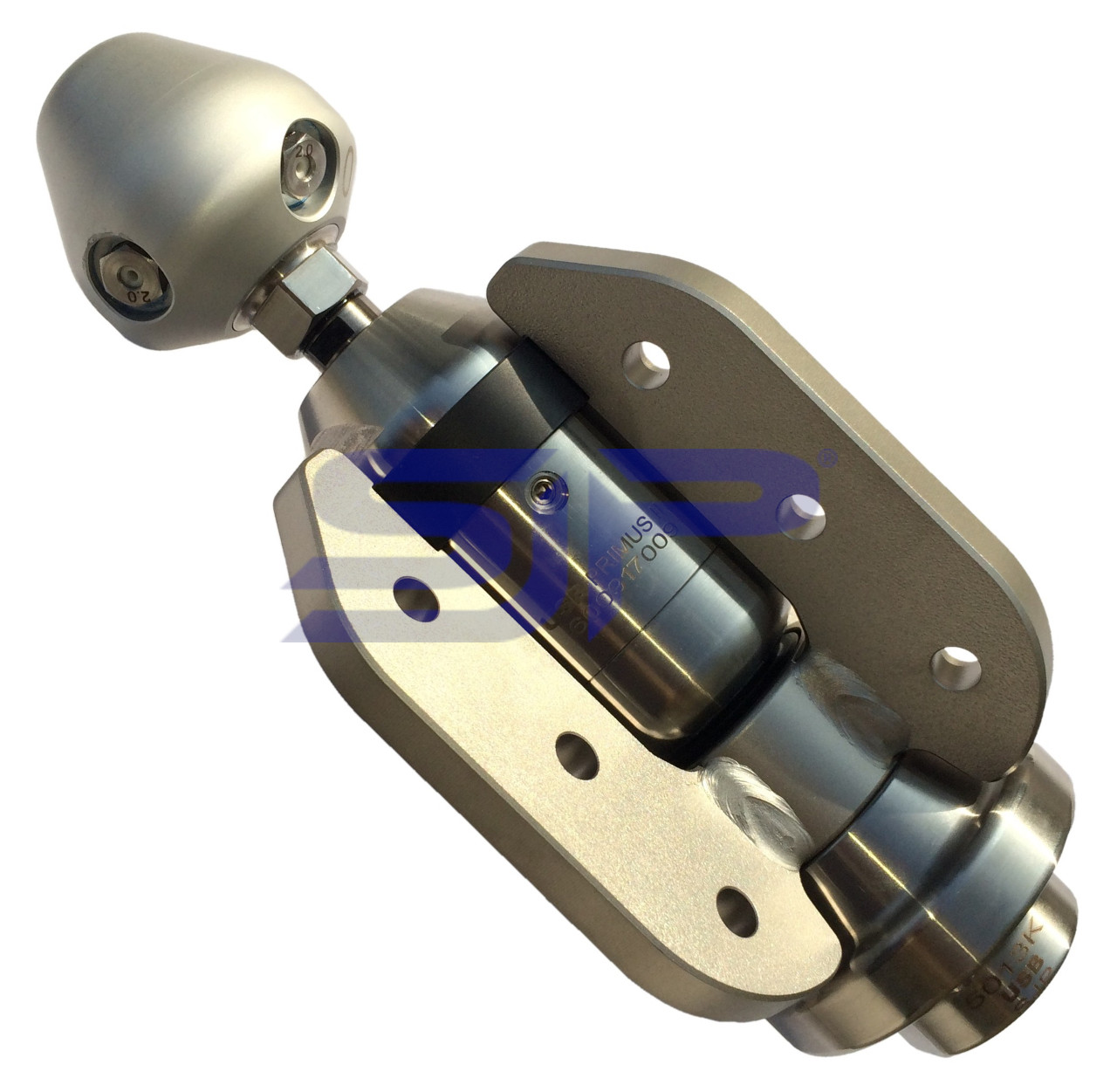

  • Spare (red) nozzle 4-head for bigger diameters ( same head Elbow / Radial flex / Hadescar)
  • Part number : 5020-10-001 ( excluded extension arms & nozzles )

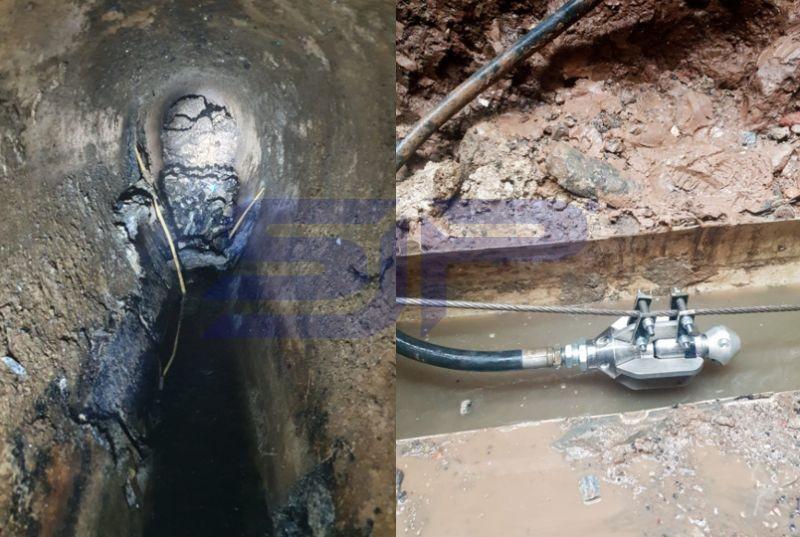

On attached video Primus 3 cleaning Factory drain ø 800 mm. 205 bar - 346 ltr./min. 1" connection.
