Elbow

Elbow

Product description

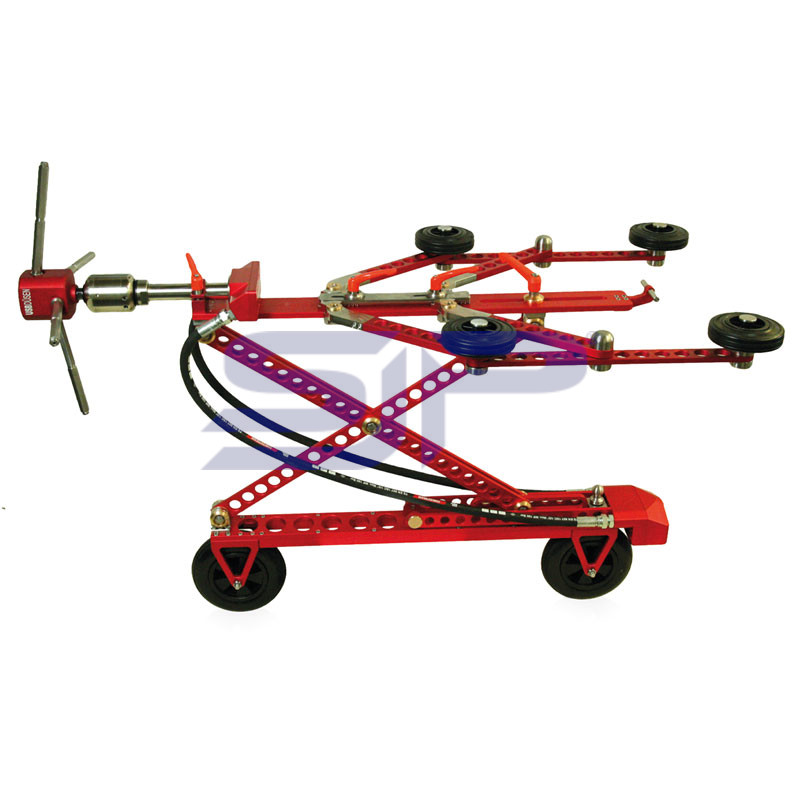

Elbow special controlled rotating nozzle with flexible guide skid for large egg-shaped diameter pipe from 600 up to 2400 mm.

The 360 degree all around cleaning thoroughly removes hardened grease and some mineral deposits from the top of the pipe. Constructed of high-quality stainless steel and aluminum this flexible skid is adjustable within a 1/16” and very user-friendly.

Suitable by using 100% recycling water

  • Inlet connection : 1¼"BSPF
  • Nozzle patern : 5 x ¼"BSPF pulling + 4 x ¼"BSPF rotating (wall) in the nozzle head.
  • Suitable pump capacity min, 300 ltr./min. (67 gpm)
  • Dimensions : 420 x 1350 mm.
  • Weight : 25 kg.
  • Complete kit excl. extension arms part number : 2555


  • Extension arms ¼"BSPM/F length 25 mm. (require 4 pieces for 1 head) P/N : 5070
  • Extension arms ¼"BSPM/F length 50 mm. (require 4 pieces for 1 head) P/N : 5072
  • Extension arms ¼"BSPM/F length 100 mm. (require 4 pieces for 1 head) P/N : 5074
  • Spare nozzle kop ( excl. extension arms & nozzles) P/N : 5020-10-001
  • Spare nozzles ¼"BSPM hex 14 : P/N : 1508....
