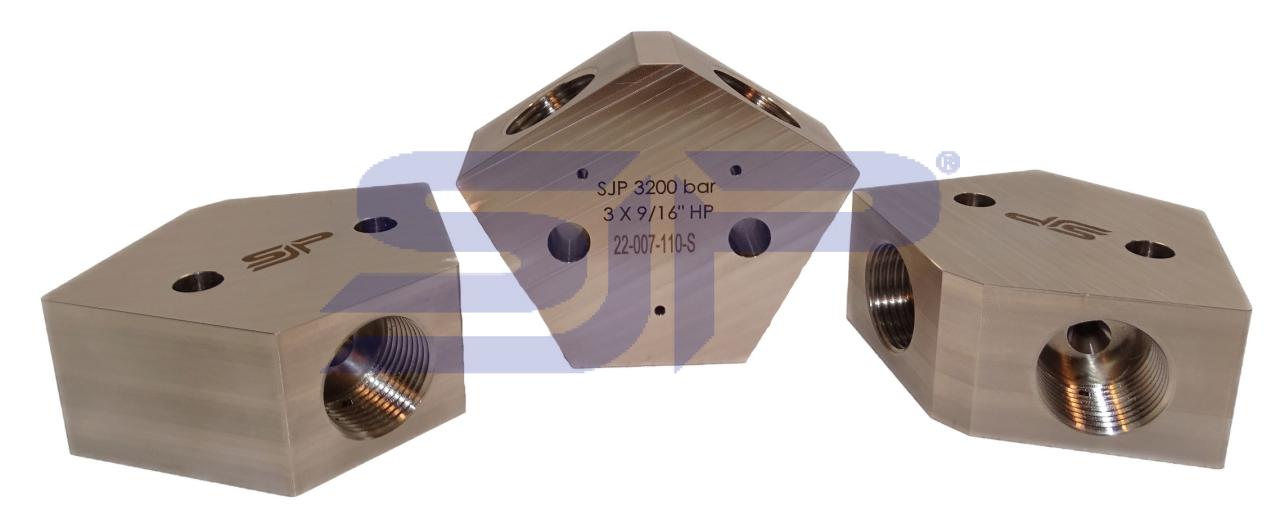

Y-Manifold included 2 mounting holes.
Mostly used on Robots
- Connection : 3 x 9/16"HP female
- Dimensions : 100 x 80 x 38 mm.
- Material: st. steel 316 (chemical resistant)
- Weight : 1,27 kg.
- Part Number: 22-007-110-S
- Manifold without adapters wil be standard supplied without SIR certificate
- Manifold with adapters wil be standard supplied with SIR certificate.
- 9/16" HP male - female adapters click here
- 9/16" HP male - male adapters click here
- Gland nuts click here
- Collars (M14LH-9/16"LH) click here
All our adapters - manifolds are unselective tested,
When we receive adapters at least two of them will be tested at least 1.3 x working pressure on attached pdf file (click on certificate) you will find test certificate of this manifold who is tested at 3200 Bar (max. pressure seats can handle)
Open attached drawing for more details
