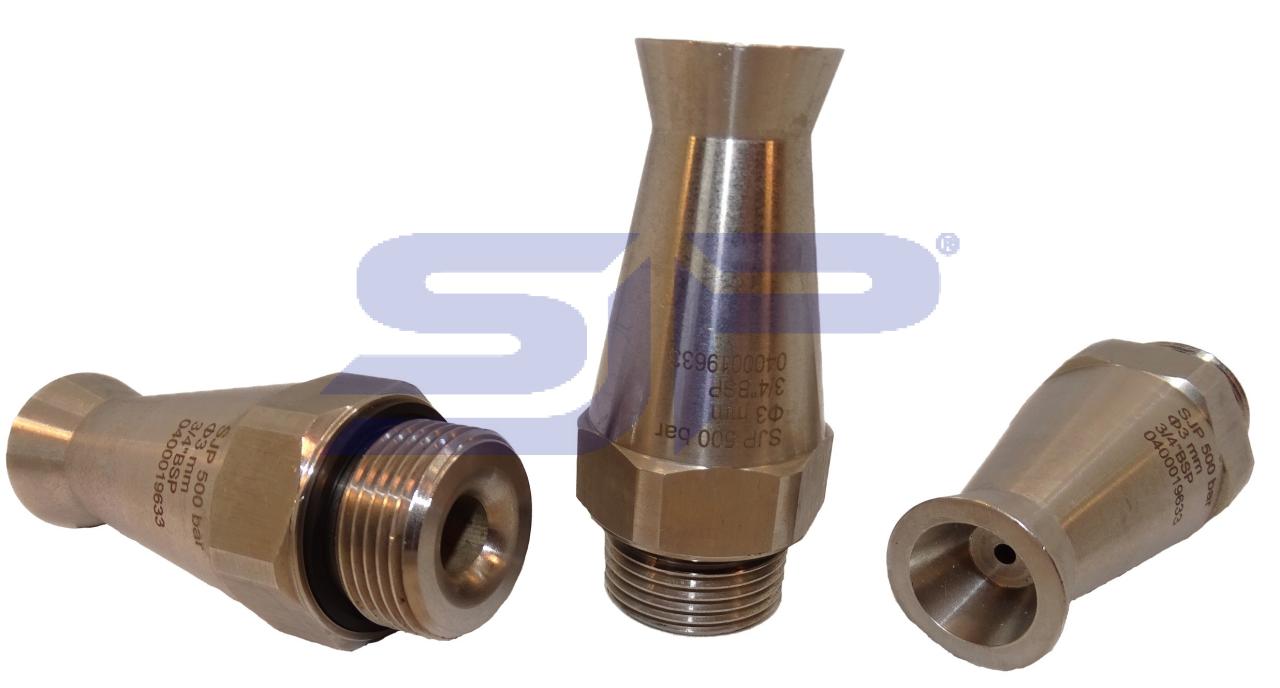

Long Jet Nozzle
500 Bar
Product description
Long Jet nozzle (also called "Longcast" nozzle) special design for cleaning long distance.

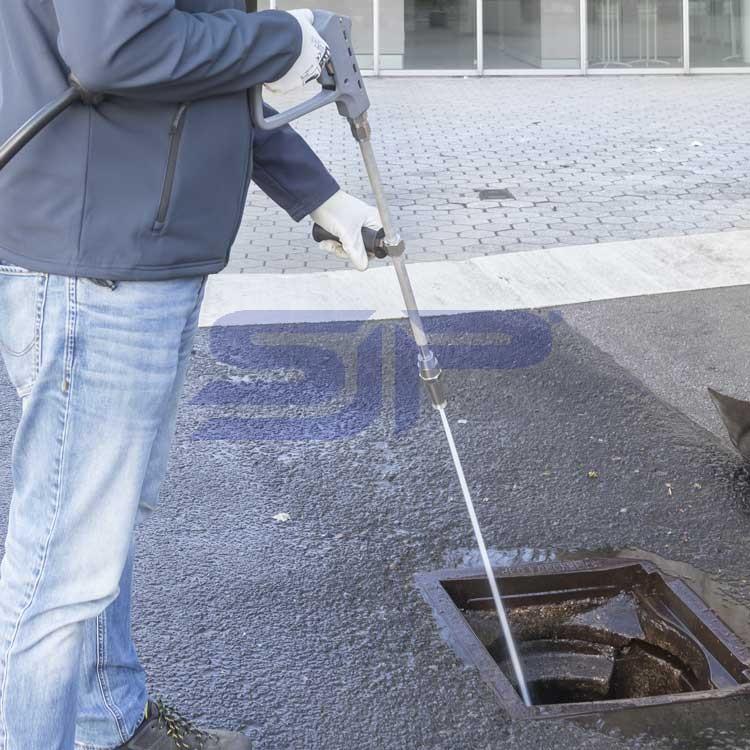

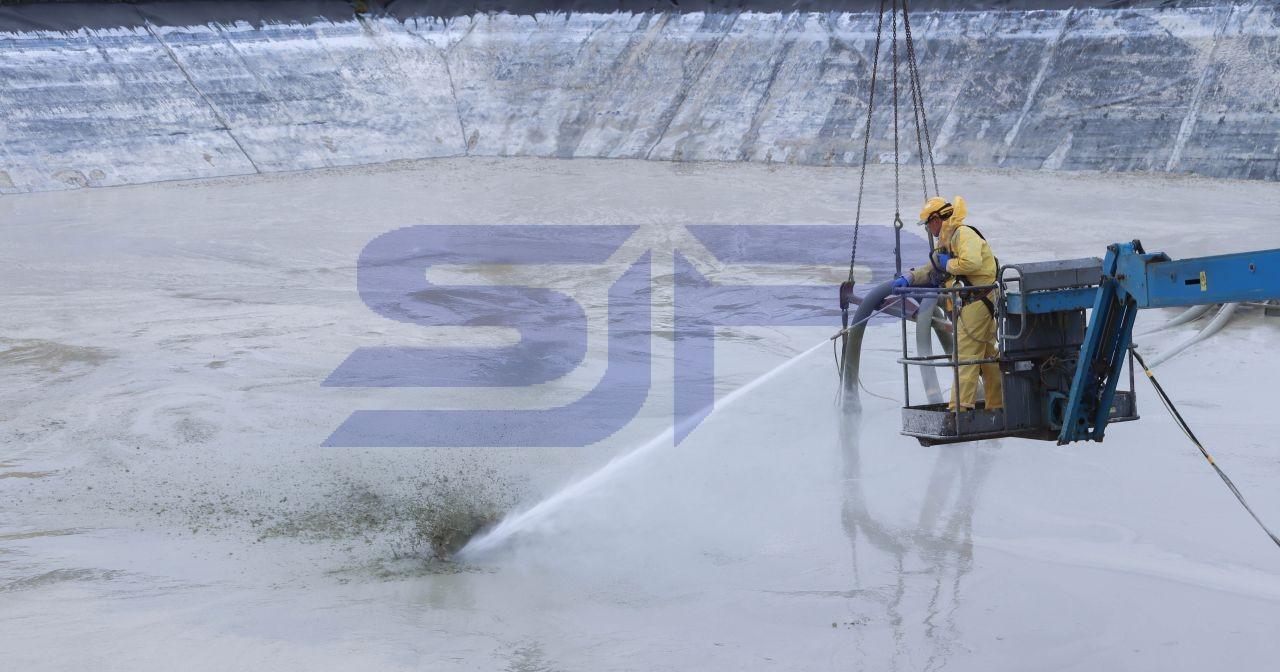

Even after ± 6 mtr. (depending on flow & pressure combination) stil extremly high impact force, so no long unstable - heavy lances animore to clean deep wells - gutters - high buildings, use this nozzle.
Flow up to ± 30 ltr./min. we advice the ø 3 mm., for higher flow ø 5 mm. diameter
- Connection : ¾"BSPM
- Nozzle diameter : ø 3 mm.
- Max. temp. : 150°C
- Material : st. st.
- Part number : 0400019633

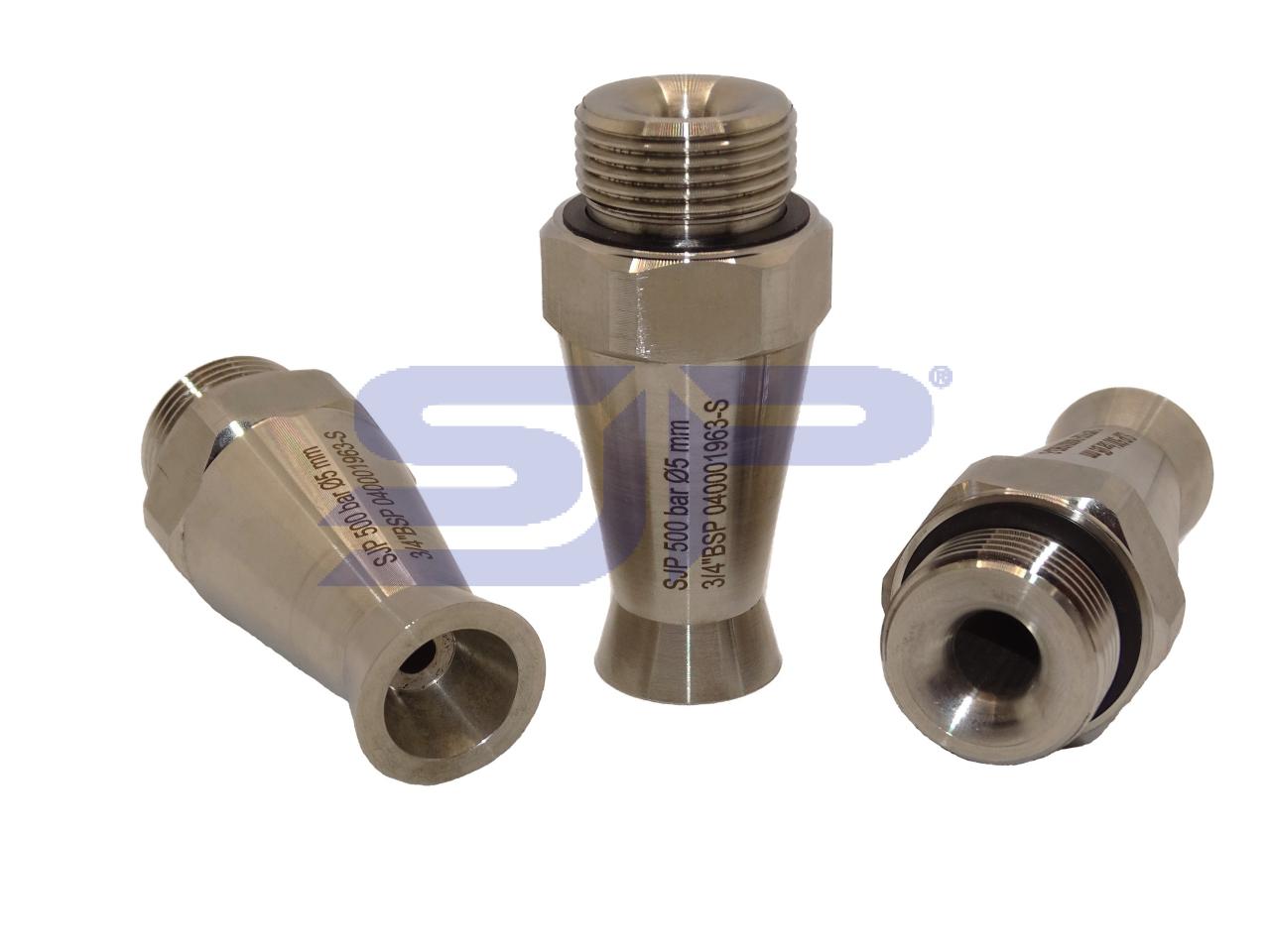

- Connection : ¾"BSPM
- Nozzle diameter : ø 5 mm.
- Max. temp. : 150°C
- Material : st. st.
- Part number : 040001963-S

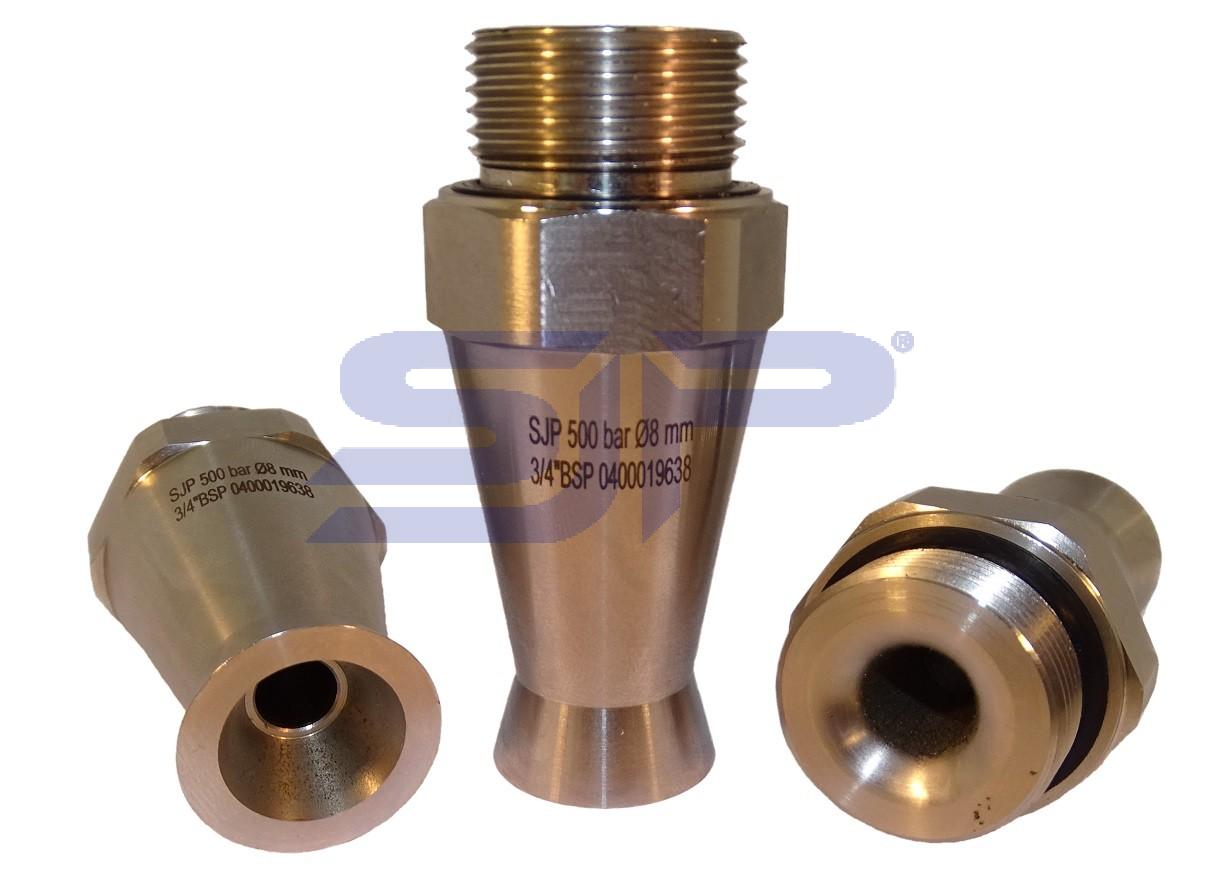

- Connection : ¾"BSPM
- Nozzle diameter : ø 8 mm.
- Max. temp. : 150°C
- Material : st. st.
- Part number : 0400019638
On attached video demo with only 150 Bar and 120 ltr./min, (combi), long cast nozzle mounted (with adapter 119029-3) on a standard ¼" barrel, bounded jet of a distance of ± 8 mtrs.
More details open attached drawing
Captive seal is use for excellent sealing above nozzle, spare seal ¾"BSP P/N : DIN3869.27
So only use anti-seize grease for mounting, no glue or teflon tape.

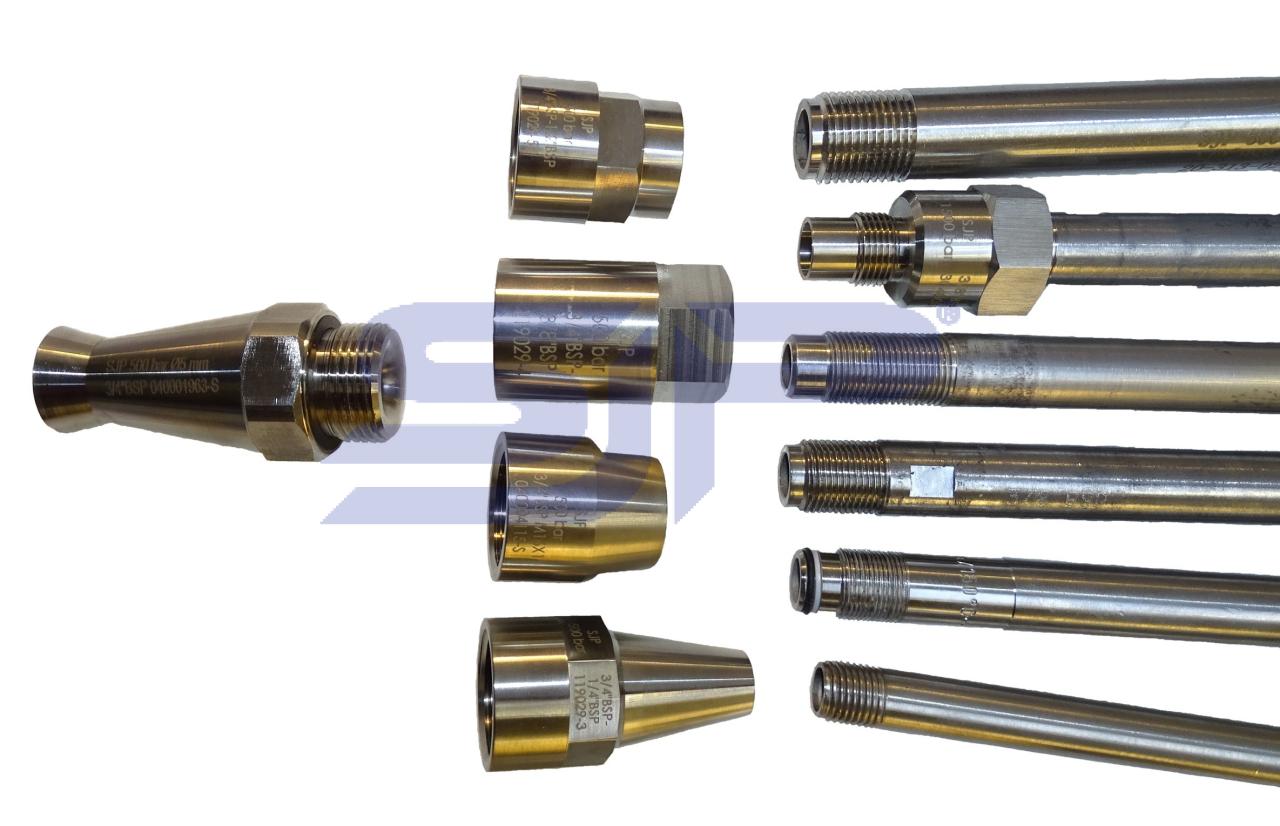

Special reducing adapters for mounting the Long Jet nozzle :

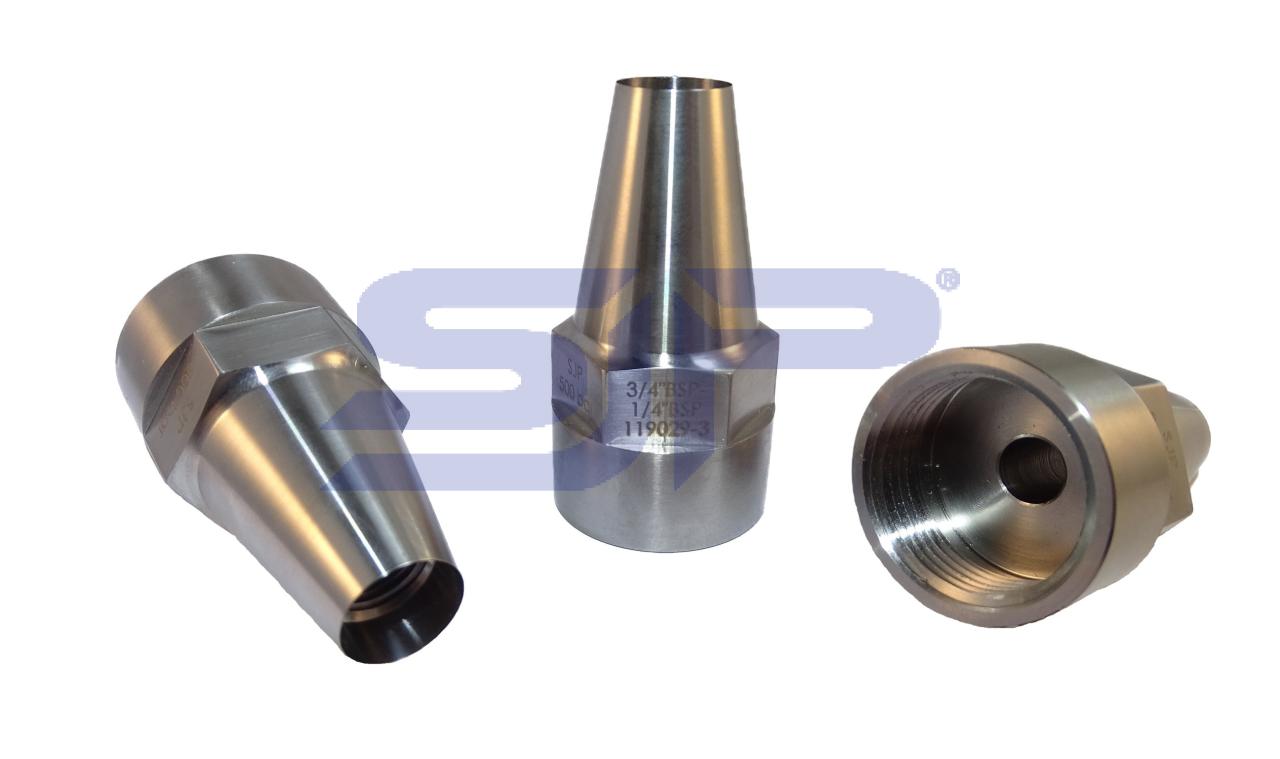

¼"BSP Female
- Connection : ¾"BSP Female - ¼"BSP Female
- Material : st. st. 316
- Part number : 119029-3

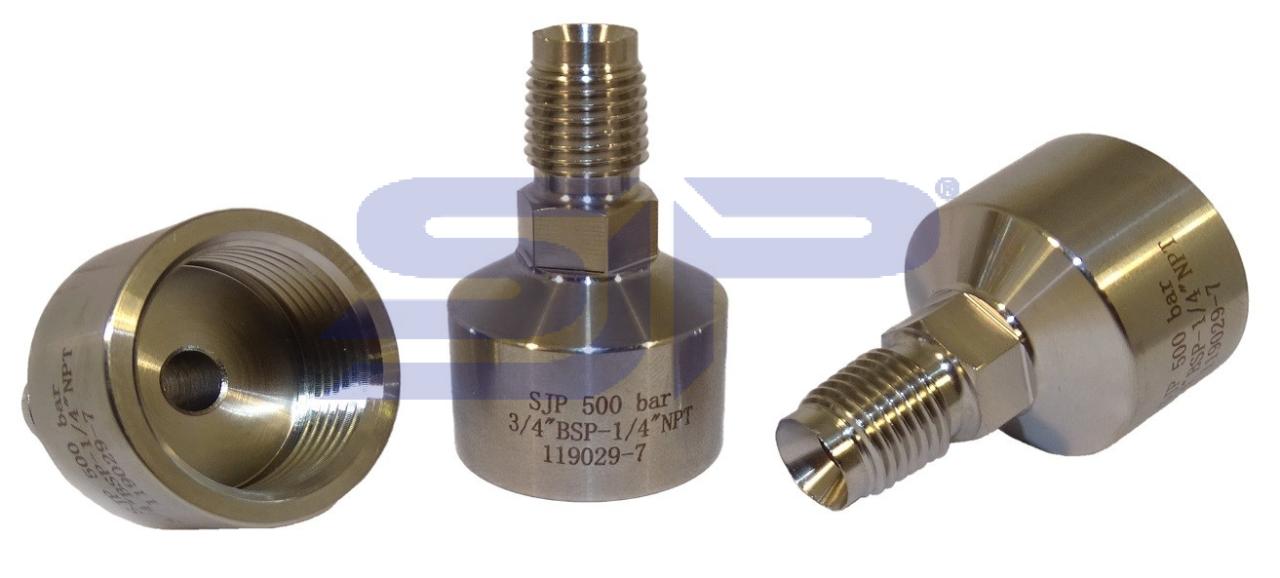

¼"NPT Male
- Connection : ¾"BSP Female - ¼"NPT Male
- Material : st. st. 316
- Part number : 119029-7

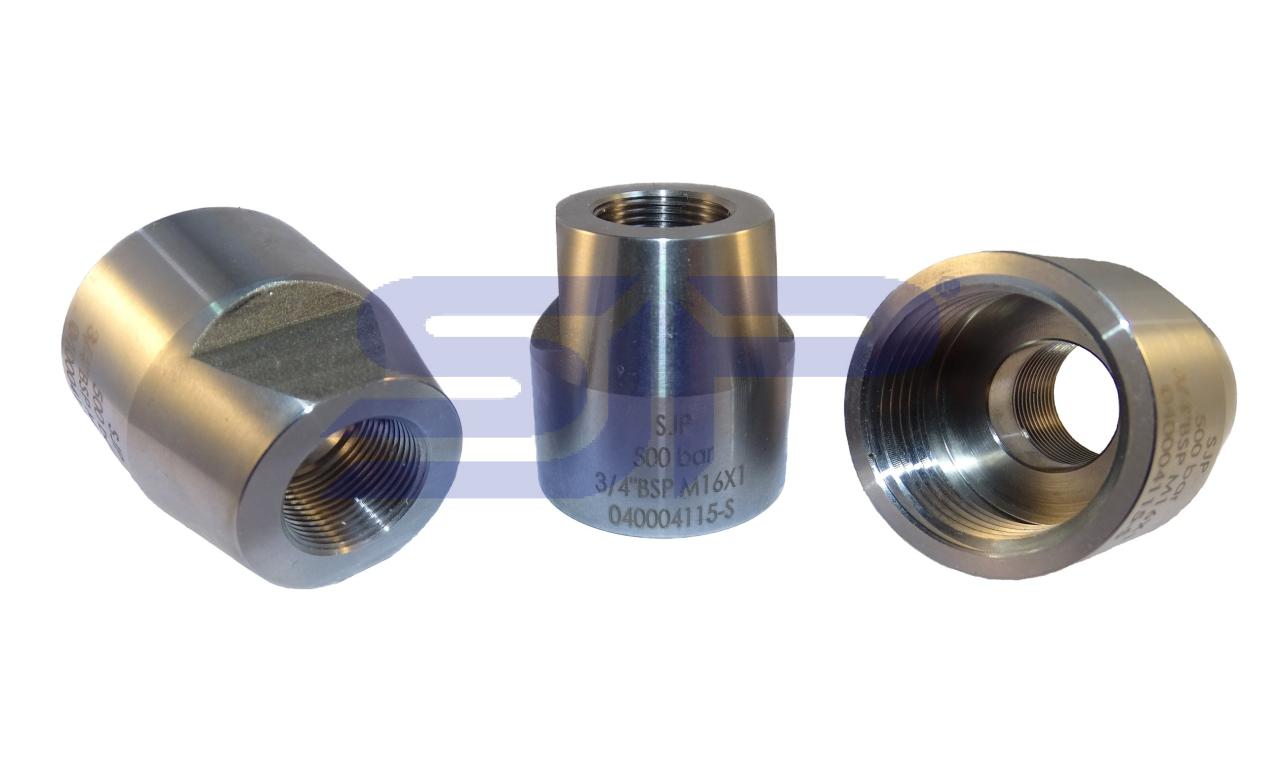

M16x1 Female
- Connection : ¾"BSPF - M16x1F
- Material : st.st. 316
- Part number : 040004115-S
⅜"BSP Female (for full thread on the barrel)
- Connection : ¾"BSP Female - ⅜"BSP Female
- Material : st. st. 316
- Part number : 119029-4S

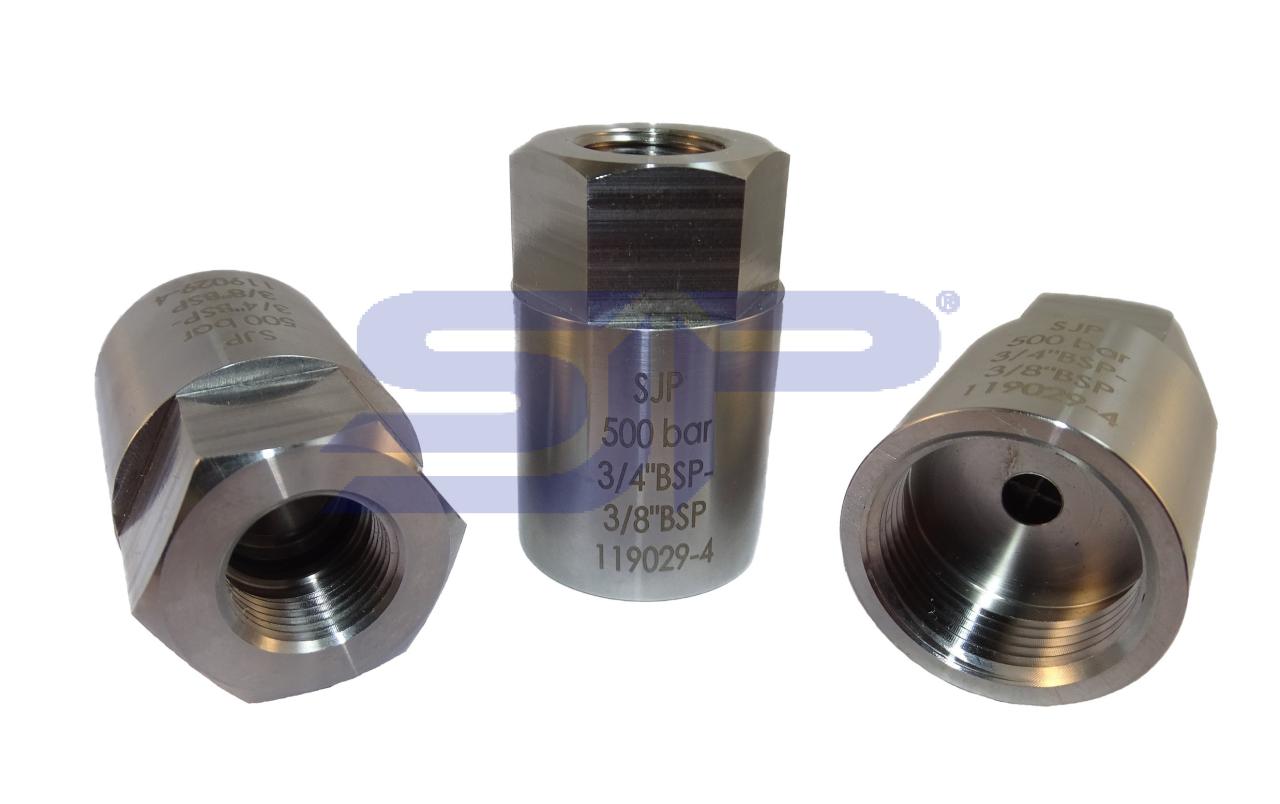

⅜"BSP Female (for nozzle holders with O-ring part and Hammelmann® gun barrel)
- Connection : ¾"BSP Female - ⅜"BSP Female (incl. flow stabilizer & O-ring)
- Material : st. st. 316
- Part number : 119029-4
O-ring : 84-N70-112

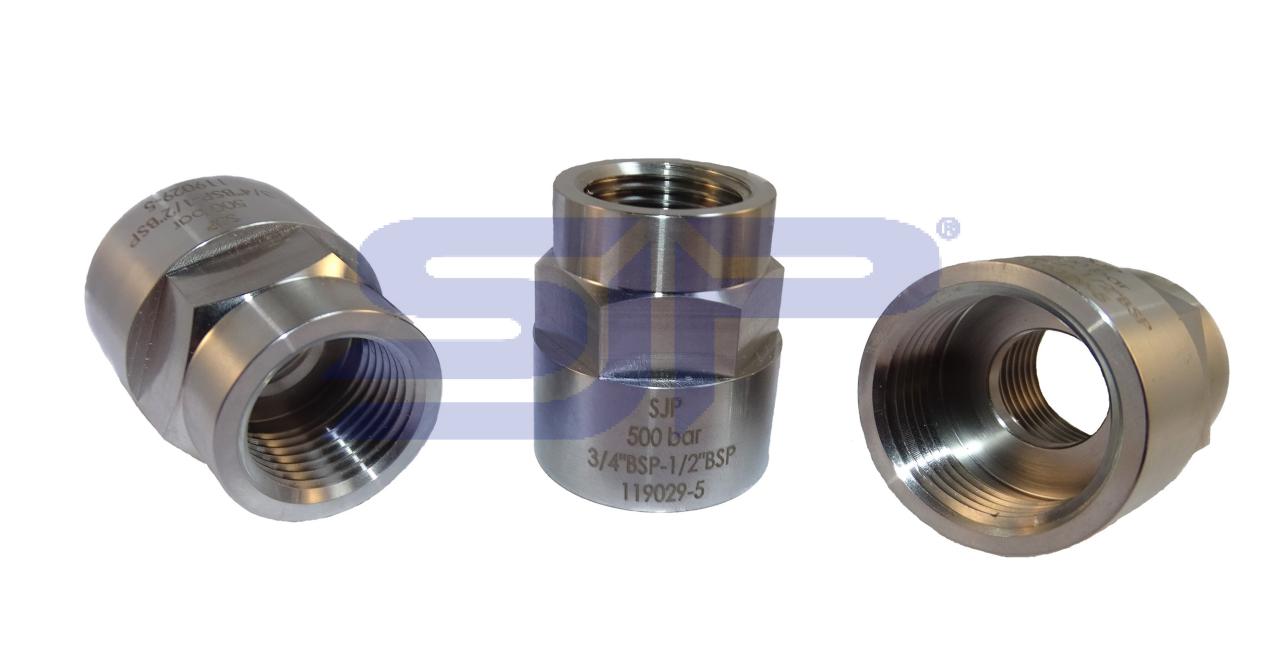

½"BSP Female
- Connection : ¾"BSP Female - ½"BSP Female
- Material : st. st. 316
- Part number : 119029-5
½"BSP Female (for o-ring part and Uraca® gun barrel)
- Connection : ¾"BSP Female - ½"BSP Female (incl. O-ring)
- Material : st. st. 316
- Part number : 119029-5L
O-ring : 304007.2
½"BSP Female Hand Holder
- Connection : ¾"BSP Female - ½"BSP Female
- Material : st. st. 316
- Part number : 119029-6
More details open attached drawing of choicen adapter
All our adapters / lances a.s.o. are unselective tested,
When we receive adapters / lances a.s.o. at least will be tested at least 1.3 x working pressure on attached pdf file (open certtificate Long Cast nozzle) you will find test certificate the nozzle, in this case we traded the hole of ø 5 mm. to M6 and put a blind plug in so we can blind the nozzle for certification, we now get a good picture of de sealing and the material strength, nozzle is tested on 690 Bar
With the nozzle we also tested the adapter 119029-3 (¼"BSPF) open "certificate ¼"BSPF
